Double Row Self Aligning

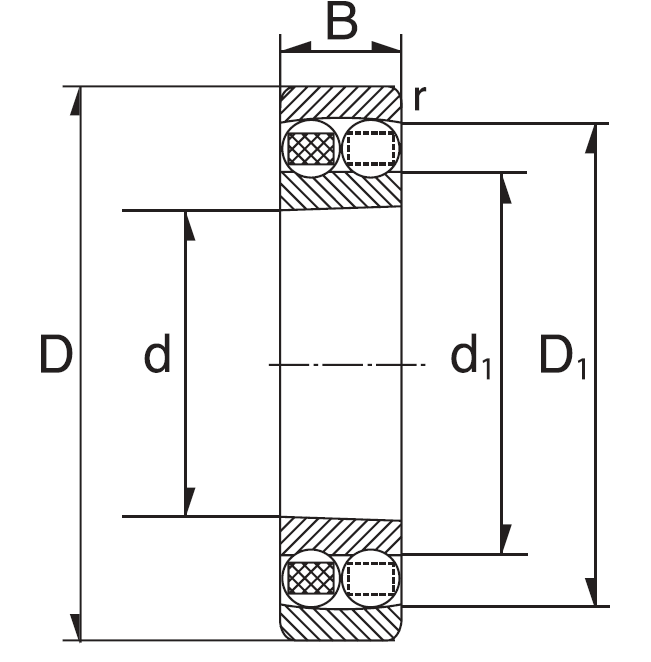

Reference
d = inner ring dimension
D = Outer ring dimension
B = Bearing width
| Ref | d | D | B | Load Rating | Limiting Speed | Weight | Radial Play | OR Material | IR Material | Ball Material | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | Grease | Oil | |||||||||
1200
|
10.00 | 30.00 | 9.00 | 4050 | 1290 | 22.0 | - | 34 | 0.002-0.013 | AISI52100 | AISI52100 | AISI52100 |
|
S1200
|
10.00 | 30.00 | 9.00 | 2835 | 903 | 22.0 | - | 34 | 0.002-0.013 | AISI440 | AISI440 | AISI440 |
|
1200-2RS
|
10.00 | 30.00 | 9.00 | 4050 | 1290 | 22.0 | - | 34 | 0.002-0.013 | AISI52100 | AISI52100 | AISI52100 |
|
S1200-2RS
|
10.00 | 30.00 | 9.00 | 2835 | 903 | 22.0 | - | 34 | 0.002-0.013 | AISI440 | AISI440 | AISI440 |
|
S2200-2RS
|
10.00 | 30.00 | 14.00 | 3710 | 1071 | 22.0 | 28.0 | 47 | 0.002-0.013 | AISI440 | AISI440 | AISI440 |
|
2200-2RS
|
10.00 | 30.00 | 14.00 | 5300 | 1530 | 22.0 | 28.0 | 47 | 0.002-0.013 | AISI52100 | AISI52100 | AISI52100 |
|
S2200
|
10.00 | 30.00 | 14.00 | 3710 | 1071 | 22.0 | 28.0 | 47 | 0.002-0.013 | AISI440 | AISI440 | AISI440 |
|
2200
|
10.00 | 30.00 | 14.00 | 5300 | 1530 | 22.0 | 28.0 | 47 | 0.002-0.013 | AISI52100 | AISI52100 | AISI52100 |
|
S1201-2RS
|
12.00 | 32.00 | 10.00 | 3220 | 980 | 21.0 | - | 40 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
1201-2RS
|
12.00 | 32.00 | 10.00 | 4600 | 1400 | 21.0 | - | 40 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S1201
|
12.00 | 32.00 | 10.00 | 3220 | 980 | 21.0 | - | 40 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
1201
|
12.00 | 32.00 | 10.00 | 4600 | 1400 | 21.0 | - | 40 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
2201
|
12.00 | 32.00 | 14.00 | 6000 | 1960 | 20.0 | 25.0 | 53 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S2201
|
12.00 | 32.00 | 14.00 | 4200 | 1372 | 20.0 | 25.0 | 53 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
S2201-2RS
|
12.00 | 32.00 | 14.00 | 4200 | 1372 | 20.0 | 25.0 | 53 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
2201-2RS
|
12.00 | 32.00 | 14.00 | 6000 | 1960 | 20.0 | 25.0 | 53 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S1202-2RS
|
15.00 | 35.00 | 11.00 | 3920 | 1372 | 18.5 | - | 49 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
1202-2RS
|
15.00 | 35.00 | 11.00 | 5600 | 1960 | 18.5 | - | 49 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S1202
|
15.00 | 35.00 | 11.00 | 3920 | 1372 | 18.5 | - | 49 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
1202
|
15.00 | 35.00 | 11.00 | 5600 | 1960 | 18.5 | - | 49 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S2202-2RS
|
15.00 | 35.00 | 14.00 | 4200 | 1533 | 18.0 | 22.0 | 60 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
S2202
|
15.00 | 35.00 | 14.00 | 4200 | 1533 | 18.0 | 22.0 | 60 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
2202
|
15.00 | 35.00 | 14.00 | 6000 | 2190 | 18.0 | 22.0 | 60 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
2202-2RS
|
15.00 | 35.00 | 14.00 | 6000 | 2190 | 18.0 | 22.0 | 60 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S1203
|
17.00 | 40.00 | 12.00 | 4130 | 1610 | 17.5 | - | 73 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
S1203-2RS
|
17.00 | 40.00 | 12.00 | 4130 | 1610 | 17.5 | - | 73 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
1203-2RS
|
17.00 | 40.00 | 12.00 | 5900 | 2300 | 17.5 | - | 73 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
1203
|
17.00 | 40.00 | 12.00 | 5900 | 2300 | 17.5 | - | 73 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S2203-2RS
|
17.00 | 40.00 | 16.00 | 5530 | 1960 | 16.0 | 19.0 | 88 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
2203
|
17.00 | 40.00 | 16.00 | 7900 | 2800 | 16.0 | 19.0 | 88 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
S2203
|
17.00 | 40.00 | 16.00 | 5530 | 1960 | 16.0 | 19.0 | 88 | 0.003-0.018 | AISI440 | AISI440 | AISI440 |
|
2203-2RS
|
17.00 | 40.00 | 16.00 | 7900 | 2800 | 16.0 | 19.0 | 88 | 0.003-0.018 | AISI52100 | AISI52100 | AISI52100 |
|
1204
|
20.00 | 47.00 | 14.00 | 7500 | 2950 | 14.5 | - | 120 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S1204
|
20.00 | 47.00 | 14.00 | 5250 | 2065 | 14.5 | - | 120 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
1204-2RS
|
20.00 | 47.00 | 14.00 | 7500 | 2950 | 14.5 | - | 120 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S1204-2RS
|
20.00 | 47.00 | 14.00 | 5250 | 2065 | 14.5 | - | 120 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
S2204-2RS
|
20.00 | 47.00 | 18.00 | 6860 | 2765 | 13.0 | 16.0 | 140 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
2204-2RS
|
20.00 | 47.00 | 18.00 | 9800 | 3950 | 13.0 | 16.0 | 140 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
2204
|
20.00 | 47.00 | 18.00 | 9800 | 3950 | 13.0 | 16.0 | 140 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S2204
|
20.00 | 47.00 | 18.00 | 6860 | 2765 | 13.0 | 16.0 | 140 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
1205
|
25.00 | 52.00 | 15.00 | 9150 | 3900 | 12.0 | - | 140 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S1205
|
25.00 | 52.00 | 15.00 | 6405 | 2730 | 12.0 | - | 140 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
1205-2RS
|
25.00 | 52.00 | 15.00 | 9150 | 3900 | 12.0 | - | 140 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S1205-2RS
|
25.00 | 52.00 | 15.00 | 6405 | 2730 | 12.0 | - | 140 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
S2205
|
25.00 | 52.00 | 18.00 | 6860 | 3045 | 12.0 | 14.0 | 165 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
S2205-2RS
|
25.00 | 52.00 | 18.00 | 6860 | 3045 | 12.0 | 14.0 | 165 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
2205-2RS
|
25.00 | 52.00 | 18.00 | 9800 | 4350 | 12.0 | 14.0 | 165 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
2205
|
25.00 | 52.00 | 18.00 | 9800 | 4350 | 12.0 | 14.0 | 165 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
1206
|
30.00 | 62.00 | 16.00 | 11000 | 5500 | 10.0 | - | 220 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
1206-2RS
|
30.00 | 62.00 | 16.00 | 11000 | 5500 | 10.0 | - | 220 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S1206
|
30.00 | 62.00 | 16.00 | 7700 | 3850 | 10.0 | - | 220 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
S1206-2RS
|
30.00 | 62.00 | 16.00 | 7700 | 3850 | 10.0 | - | 220 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
S2206-2RS
|
30.00 | 62.00 | 20.00 | 8540 | 4760 | 10.0 | 12.0 | 260 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
2206-2RS
|
30.00 | 62.00 | 20.00 | 12200 | 6800 | 10.0 | 12.0 | 260 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S2206
|
30.00 | 62.00 | 20.00 | 8540 | 4760 | 10.0 | 12.0 | 260 | 0.005-0.02 | AISI440 | AISI440 | AISI440 |
|
2206
|
30.00 | 62.00 | 20.00 | 12200 | 6800 | 10.0 | 12.0 | 260 | 0.005-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
2207
|
35.00 | 72.00 | 23.00 | 17100 | 8400 | 8.5 | 10.0 | 405 | 0.006-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S2207
|
35.00 | 72.00 | 23.00 | 11970 | 5880 | 8.5 | 10.0 | 405 | 0.006-0.02 | AISI440 | AISI440 | AISI440 |
|
2207-2RS
|
35.00 | 72.00 | 23.00 | 17100 | 8400 | 8.5 | 10.0 | 405 | 0.006-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S2207-2RS
|
35.00 | 72.00 | 23.00 | 11970 | 5880 | 8.5 | 10.0 | 405 | 0.006-0.02 | AISI440 | AISI440 | AISI440 |
|
S2208-2RS
|
40.00 | 80.00 | 23.00 | 12390 | 6755 | 7.5 | 9.0 | 505 | 0.006-0.02 | AISI440 | AISI440 | AISI440 |
|
2208-2RS
|
40.00 | 80.00 | 23.00 | 17700 | 9650 | 7.5 | 9.0 | 505 | 0.006-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S2208
|
40.00 | 80.00 | 23.00 | 12390 | 6755 | 7.5 | 9.0 | 505 | 0.006-0.02 | AISI440 | AISI440 | AISI440 |
|
2208
|
40.00 | 80.00 | 23.00 | 17700 | 9650 | 7.5 | 9.0 | 505 | 0.006-0.02 | AISI52100 | AISI52100 | AISI52100 |
|
S2209-2RS
|
45.00 | 85.00 | 23.00 | 12880 | 7630 | 7.1 | 8.5 | 545 | 0.006-0.023 | AISI440 | AISI440 | AISI440 |
|
2209-2RS
|
45.00 | 85.00 | 23.00 | 18400 | 10900 | 7.1 | 8.5 | 545 | 0.006-0.023 | AISI52100 | AISI52100 | AISI52100 |
|
S2209
|
45.00 | 85.00 | 23.00 | 12880 | 7630 | 7.1 | 8.5 | 545 | 0.006-0.023 | AISI440 | AISI440 | AISI440 |
|
2209
|
45.00 | 85.00 | 23.00 | 18400 | 10900 | 7.1 | 8.5 | 545 | 0.006-0.023 | AISI52100 | AISI52100 | AISI52100 |
|
2210
|
50.00 | 90.00 | 23.00 | 18400 | 11500 | 6.3 | 8.0 | 590 | 0.006-0.023 | AISI52100 | AISI52100 | AISI52100 |
|
S2210
|
50.00 | 90.00 | 23.00 | 12880 | 8050 | 6.3 | 8.0 | 590 | 0.006-0.023 | AISI440 | AISI440 | AISI440 |
|
2210-2RS
|
50.00 | 90.00 | 23.00 | 18400 | 11500 | 6.3 | 8.0 | 590 | 0.006-0.023 | AISI52100 | AISI52100 | AISI52100 |
|
S2210-2RS
|
50.00 | 90.00 | 23.00 | 12880 | 8050 | 6.3 | 8.0 | 590 | 0.006-0.023 | AISI440 | AISI440 | AISI440 |
