Stainless Steel Locking NUTS

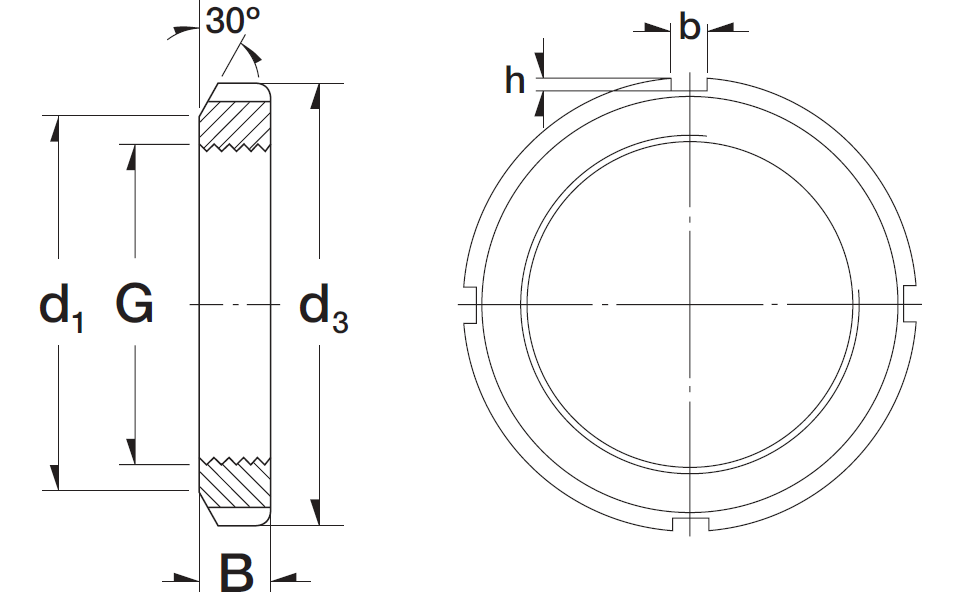

| Lock nut | Locking washer | G | d1 | d3 | B | b | h | Material |
|---|---|---|---|---|---|---|---|---|
SKM0
|
SMB0 | M 10 x 0.75 | 13.50 | 18.00 | 4.00 | 3.00 | 2.00 | AISI201 |
|
SKM1
|
SMB1 | M 12 x 1 | 17.00 | 22.00 | 4.00 | 3.00 | 2.00 | AISI201 |
|
SKM2
|
SMB2 | M 15 x 1 | 21.00 | 25.00 | 5.00 | 4.00 | 2.00 | AISI201 |
|
SKM3
|
SMB3 | M 17 x 1 | 24.00 | 28.00 | 5.00 | 4.00 | 2.00 | AISI201 |
|
SKM4
|
SMB4 | M 20 x 1 | 26.00 | 32.00 | 6.00 | 4.00 | 2.00 | AISI201 |
|
SKM5
|
SMB5 | M 25 x 1.5 | 32.00 | 38.00 | 7.00 | 5.00 | 2.00 | AISI201 |
|
SKM6
|
SMB6 | M 30 x 1.5 | 38.00 | 45.00 | 7.00 | 5.00 | 2.00 | AISI201 |
|
SKM7
|
SMB7 | M 35 x 1.5 | 44.00 | 52.00 | 8.00 | 5.00 | 2.00 | AISI201 |
|
SKM8
|
SMB8 | M 40 x 1.5 | 50.00 | 58.00 | 9.00 | 6.00 | 2.50 | AISI201 |
|
SKM9
|
SMB9 | M 45 x 1.5 | 56.00 | 65.00 | 10.00 | 6.00 | 2.50 | AISI201 |
|
SKM10
|
SMB10 | M 50 x 1.5 | 61.00 | 70.00 | 11.00 | 6.00 | 2.50 | AISI201 |
|
SKM11
|
SMB11 | M 55 x 2 | 67.00 | 75.00 | 11.00 | 7.00 | 3.00 | AISI201 |
|
SKM12
|
SMB12 | M 60 x 2 | 73.00 | 80.00 | 11.00 | 7.00 | 3.00 | AISI201 |
|
SKM13
|
SMB13 | M 65 x 2 | 79.00 | 85.00 | 12.00 | 7.00 | 3.00 | AISI201 |
|
SKM14
|
SMB14 | M 70 x 2 | 85.00 | 92.00 | 12.00 | 8.00 | 3.50 | AISI201 |
|
SKM15
|
SMB15 | M 75 x 2 | 90.00 | 98.00 | 13.00 | 8.00 | 3.50 | AISI201 |
|
SKM16
|
SMB16 | M 80 x 2 | 95.00 | 105.00 | 15.00 | 8.00 | 3.50 | AISI201 |
|
SKM17
|
SMB17 | M 85 x 2 | 102.00 | 110.00 | 16.00 | 8.00 | 3.50 | AISI201 |
|
SKM18
|
SMB18 | M 90 x 2 | 108.00 | 120.00 | 16.00 | 10.00 | 4.00 | AISI201 |
|
SKM19
|
SMB19 | M 95 x 2 | 113.00 | 125.00 | 17.00 | 10.00 | 4.00 | AISI201 |
|
SKM20
|
SMB20 | M 100 x 2 | 120.00 | 130.00 | 18.00 | 10.00 | 4.00 | AISI201 |
