Three Part Thrust Series
Reference

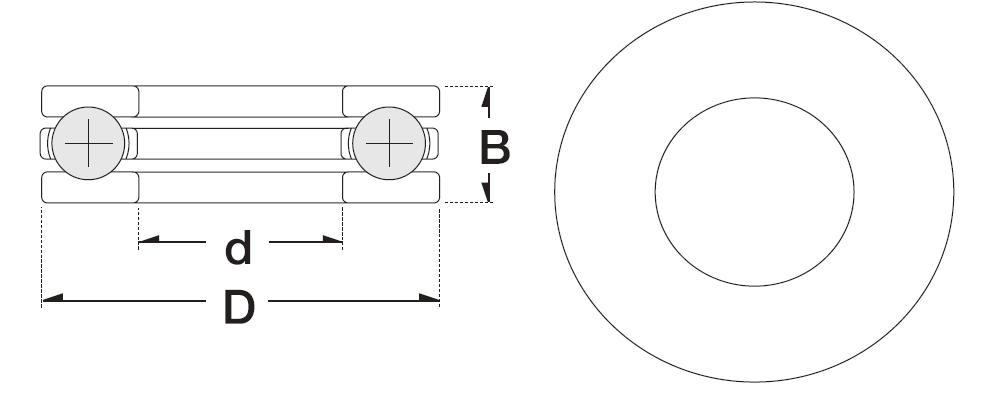

d = inner ring dimension
D = Outer ring dimension
B = Bearing width
| Ref | ds | Ds | dh | Dh | B | Load Rating | Limiting Speed | Weight | OR Material | IR Material | Ball Material | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | Grease | Oil | ||||||||||
F2-6
|
2.00 | 6.00 | 2.0 | 6.00 | 3.00 | 123 | 82 | - | - | 1 | AISI52100 | AISI52100 | AISI52100 |
|
B3
|
3.00 | 8.00 | 3.2 | 8.00 | 3.50 | 602 | 611 | - | 15 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB3
|
3.00 | 8.00 | 3.2 | 8.00 | 3.50 | 602 | 611 | - | 15 | 2 | AISI420 | AISI420 | AISI420 |
|
F4-9
|
4.00 | 9.00 | 4.2 | 9.00 | 4.00 | 167 | 157 | - | 6.5 | 1 | AISI52100 | AISI52100 | AISI52100 |
|
B4
|
4.00 | 10.00 | 4.2 | 10.00 | 4.00 | 602 | 611 | - | 15 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB4
|
4.00 | 10.00 | 4.2 | 10.00 | 4.00 | 602 | 611 | - | 15 | 2 | AISI420 | AISI420 | AISI420 |
|
F4-10
|
4.00 | 10.00 | 4.2 | 10.00 | 4.50 | 274 | 245 | - | 6 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
F5-11
|
5.00 | 11.00 | 5.2 | 11.00 | 4.50 | 284 | 284 | - | 5 | 3 | AISI52100 | AISI52100 | AISI52100 |
|
B5
|
5.00 | 12.00 | 5.2 | 12.00 | 4.00 | 640 | 810 | - | 13 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB5
|
5.00 | 12.00 | 5.2 | 12.00 | 4.00 | 640 | 810 | - | 13 | 2 | AISI420 | AISI420 | AISI420 |
|
F6-12
|
6.00 | 12.00 | 6.2 | 12.00 | 4.50 | 274 | 284 | - | 4 | 3 | AISI52100 | AISI52100 | AISI52100 |
|
B6
|
6.00 | 14.00 | 6.2 | 14.00 | 5.00 | 1275 | 1560 | - | 10 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB6
|
6.00 | 14.00 | 6.2 | 14.00 | 5.00 | 1275 | 1560 | - | 10 | 2 | AISI420 | AISI420 | AISI420 |
|
F7-15
|
7.00 | 15.00 | 7.2 | 15.00 | 5.00 | 559 | 549 | - | 3.8 | 5 | AISI52100 | AISI52100 | AISI52100 |
|
B7
|
7.00 | 17.00 | 7.2 | 17.00 | 6.00 | 1830 | 2450 | - | 10 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB7
|
7.00 | 17.00 | 7.2 | 17.00 | 6.00 | 1830 | 2450 | - | 10 | 2 | AISI420 | AISI420 | AISI420 |
|
F8-16
|
8.00 | 16.00 | 8.2 | 16.00 | 5.00 | 598 | 627 | - | 3.5 | 5 | AISI52100 | AISI52100 | AISI52100 |
|
B8
|
8.00 | 19.00 | 8.2 | 19.00 | 7.00 | 2340 | 3190 | - | 8 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB8
|
8.00 | 19.00 | 8.2 | 19.00 | 7.00 | 2340 | 3190 | - | 8 | 2 | AISI420 | AISI420 | AISI420 |
|
F9-17
|
9.00 | 17.00 | 9.2 | 17.00 | 5.00 | 578 | 627 | - | 3.5 | 6 | AISI52100 | AISI52100 | AISI52100 |
|
B9
|
9.00 | 20.00 | 9.2 | 20.00 | 7.00 | 2400 | 3190 | - | 8 | 2 | AISI52100 | AISI52100 | AISI52100 |
|
SB9
|
9.00 | 20.00 | 9.2 | 20.00 | 7.00 | 2400 | 3190 | - | 8 | 2 | AISI420 | AISI420 | AISI420 |
|
F10-18
|
10.00 | 18.00 | 10.2 | 18.00 | 5.50 | 617 | 706 | - | 3 | 6 | AISI52100 | AISI52100 | AISI52100 |
|
51100
|
10.00 | 24.00 | 11.0 | 24.00 | 9.00 | 8710 | 8800 | 7.5 | 9.5 | 20 | AISI52100 | AISI52100 | AISI52100 |
|
S51100
|
10.00 | 24.00 | 11.0 | 24.00 | 9.00 | 8710 | 8800 | 7.5 | 9.5 | 20 | AISI420 | AISI420 | AISI420 |
|
51200
|
10.00 | 26.00 | 12.0 | 26.00 | 11.00 | 12700 | 17000 | 6 | 8 | 29 | AISI52100 | AISI52100 | AISI52100 |
|
S51200
|
10.00 | 26.00 | 12.0 | 26.00 | 11.00 | 12700 | 17000 | 6 | 8 | 29 | AISI420 | AISI420 | AISI420 |
|
51101
|
12.00 | 26.00 | 13.0 | 26.00 | 9.00 | 9035 | 10000 | 7 | 9.5 | 22 | AISI52100 | AISI52100 | AISI52100 |
|
S51101
|
12.00 | 26.00 | 13.0 | 26.00 | 9.00 | 9035 | 10000 | 7 | 9.5 | 22 | AISI420 | AISI420 | AISI420 |
|
51201
|
12.00 | 28.00 | 14.0 | 28.00 | 11.00 | 13200 | 19000 | 6 | 8 | 32 | AISI52100 | AISI52100 | AISI52100 |
|
S51201
|
12.00 | 28.00 | 14.0 | 28.00 | 11.00 | 13200 | 19000 | 6 | 8 | 32 | AISI420 | AISI420 | AISI420 |
|
51102
|
15.00 | 28.00 | 16.0 | 28.00 | 9.00 | 9360 | 11200 | 6.3 | 8.5 | 24 | AISI52100 | AISI52100 | AISI52100 |
|
S51102
|
15.00 | 28.00 | 16.0 | 28.00 | 9.00 | 9360 | 11200 | 6.3 | 8.5 | 24 | AISI420 | AISI420 | AISI420 |
|
51202
|
15.00 | 32.00 | 17.0 | 32.00 | 12.00 | 16600 | 25000 | 5 | 6.7 | 43 | AISI52100 | AISI52100 | AISI52100 |
|
S51202
|
15.00 | 32.00 | 17.0 | 32.00 | 12.00 | 16600 | 25000 | 5 | 6.7 | 43 | AISI420 | AISI420 | AISI420 |
|
51103
|
17.00 | 30.00 | 18.0 | 30.00 | 9.00 | 9750 | 12200 | 6.3 | 8.5 | 28 | AISI52100 | AISI52100 | AISI52100 |
|
S51103
|
17.00 | 30.00 | 18.0 | 30.00 | 9.00 | 9750 | 12200 | 6.3 | 8.5 | 28 | AISI420 | AISI420 | AISI420 |
|
51203
|
17.00 | 35.00 | 19.0 | 35.00 | 12.00 | 17300 | 27500 | 5 | 6.7 | 50 | AISI52100 | AISI52100 | AISI52100 |
|
S51203
|
17.00 | 35.00 | 19.0 | 35.00 | 12.00 | 17300 | 27500 | 5 | 6.7 | 50 | AISI420 | AISI420 | AISI420 |
|
51104
|
20.00 | 35.00 | 21.0 | 35.00 | 10.00 | 12740 | 16600 | 5.6 | 7.5 | 40 | AISI52100 | AISI52100 | AISI52100 |
|
S51104
|
20.00 | 35.00 | 21.0 | 35.00 | 10.00 | 12740 | 16600 | 5.6 | 7.5 | 40 | AISI420 | AISI420 | AISI420 |
|
51204
|
20.00 | 40.00 | 22.0 | 40.00 | 14.00 | 19890 | 25000 | 4.3 | 5.6 | 82 | AISI52100 | AISI52100 | AISI52100 |
|
S51204
|
20.00 | 40.00 | 22.0 | 40.00 | 14.00 | 19890 | 25000 | 4.3 | 5.6 | 82 | AISI420 | AISI420 | AISI420 |
|
51105
|
25.00 | 42.00 | 26.0 | 42.00 | 11.00 | 15860 | 22800 | 4.8 | 6.3 | 59 | AISI52100 | AISI52100 | AISI52100 |
|
S51105
|
25.00 | 42.00 | 26.0 | 42.00 | 11.00 | 15860 | 22800 | 4.8 | 6.3 | 59 | AISI420 | AISI420 | AISI420 |
|
51205
|
25.00 | 47.00 | 27.0 | 47.00 | 15.00 | 25090 | 34000 | 3.8 | 5 | 120 | AISI52100 | AISI52100 | AISI52100 |
|
S51205
|
25.00 | 47.00 | 27.0 | 47.00 | 15.00 | 25090 | 34000 | 3.8 | 5 | 120 | AISI420 | AISI420 | AISI420 |
|
51305
|
25.00 | 52.00 | 27.0 | 52.00 | 18.00 | 34500 | 55000 | 3.2 | 4.3 | 154 | AISI52100 | AISI52100 | AISI52100 |
|
51106
|
30.00 | 47.00 | 32.0 | 47.00 | 11.00 | 16770 | 26500 | 4.5 | 6 | 68 | AISI52100 | AISI52100 | AISI52100 |
|
S51106
|
30.00 | 47.00 | 32.0 | 47.00 | 11.00 | 16770 | 26500 | 4.5 | 6 | 68 | AISI420 | AISI420 | AISI420 |
|
51206
|
30.00 | 52.00 | 32.0 | 52.00 | 16.00 | 25480 | 37500 | 3.6 | 4.5 | 150 | AISI52100 | AISI52100 | AISI52100 |
|
S51206
|
30.00 | 52.00 | 32.0 | 52.00 | 16.00 | 25480 | 37500 | 3.6 | 4.5 | 150 | AISI420 | AISI420 | AISI420 |
|
51306
|
30.00 | 60.00 | 32.0 | 60.00 | 21.00 | 38000 | 65500 | 3 | 4 | 244 | AISI52100 | AISI52100 | AISI52100 |
|
51107
|
35.00 | 52.00 | 37.0 | 52.00 | 12.00 | 17420 | 30000 | 4.3 | 5.6 | 90 | AISI52100 | AISI52100 | AISI52100 |
|
S51107
|
35.00 | 52.00 | 37.0 | 52.00 | 12.00 | 17420 | 30000 | 4.3 | 5.6 | 90 | AISI420 | AISI420 | AISI420 |
|
51207
|
35.00 | 62.00 | 37.0 | 62.00 | 18.00 | 39000 | 78000 | 3 | 4 | 220 | AISI52100 | AISI52100 | AISI52100 |
|
S51207
|
35.00 | 62.00 | 37.0 | 62.00 | 18.00 | 39000 | 78000 | 3 | 4 | 220 | AISI420 | AISI420 | AISI420 |
|
51307
|
35.00 | 68.00 | 37.0 | 68.00 | 24.00 | 50000 | 88000 | 2.7 | 3.6 | 351 | AISI52100 | AISI52100 | AISI52100 |
|
51108
|
40.00 | 60.00 | 42.0 | 60.00 | 13.00 | 23400 | 40000 | 3.8 | 5 | 120 | AISI52100 | AISI52100 | AISI52100 |
|
S51108
|
40.00 | 60.00 | 42.0 | 60.00 | 13.00 | 23400 | 40000 | 3.8 | 5 | 120 | AISI420 | AISI420 | AISI420 |
|
51208
|
40.00 | 68.00 | 42.0 | 68.00 | 19.00 | 46500 | 98000 | 2.9 | 3.8 | 270 | AISI52100 | AISI52100 | AISI52100 |
|
S51208
|
40.00 | 68.00 | 42.0 | 68.00 | 19.00 | 46500 | 98000 | 2.9 | 3.8 | 270 | AISI420 | AISI420 | AISI420 |
|
51308
|
40.00 | 78.00 | 42.0 | 78.00 | 26.00 | 61000 | 112000 | 2.4 | 3.2 | 536 | AISI52100 | AISI52100 | AISI52100 |
|
51109
|
45.00 | 65.00 | 47.0 | 65.00 | 14.00 | 24180 | 45000 | 3.4 | 4.5 | 150 | AISI52100 | AISI52100 | AISI52100 |
|
S51109
|
45.00 | 65.00 | 47.0 | 65.00 | 14.00 | 24180 | 45000 | 3.4 | 4.5 | 150 | AISI420 | AISI420 | AISI420 |
|
51209
|
45.00 | 73.00 | 47.0 | 73.00 | 20.00 | 47500 | 105000 | 2.5 | 3.5 | 320 | AISI52100 | AISI52100 | AISI52100 |
|
S51209
|
45.00 | 73.00 | 47.0 | 73.00 | 20.00 | 47500 | 105000 | 2.5 | 3.5 | 320 | AISI420 | AISI420 | AISI420 |
|
51309
|
45.00 | 85.00 | 47.0 | 85.00 | 28.00 | 75000 | 14000 | 2.1 | 3 | 612 | AISI52100 | AISI52100 | AISI52100 |
|
51110
|
50.00 | 70.00 | 52.0 | 70.00 | 14.00 | 25480 | 50000 | 3.3 | 4.5 | 160 | AISI52100 | AISI52100 | AISI52100 |
|
S51110
|
50.00 | 70.00 | 52.0 | 70.00 | 14.00 | 25480 | 50000 | 3.3 | 4.5 | 160 | AISI420 | AISI420 | AISI420 |
|
51210
|
50.00 | 78.00 | 52.0 | 78.00 | 22.00 | 48500 | 111000 | 2.4 | 3.4 | 390 | AISI52100 | AISI52100 | AISI52100 |
|
S51210
|
50.00 | 78.00 | 52.0 | 78.00 | 22.00 | 48500 | 111000 | 2.4 | 3.4 | 390 | AISI420 | AISI420 | AISI420 |
|
51310
|
50.00 | 95.00 | 52.0 | 95.00 | 31.00 | 86500 | 170000 | 1.9 | 2.8 | 932 | AISI52100 | AISI52100 | AISI52100 |
|
51111
|
55.00 | 78.00 | 57.0 | 78.00 | 16.00 | 34500 | 93000 | 2.7 | 3.8 | 240 | AISI52100 | AISI52100 | AISI52100 |
|
S51111
|
55.00 | 78.00 | 57.0 | 78.00 | 16.00 | 34500 | 93000 | 2.7 | 3.8 | 240 | AISI420 | AISI420 | AISI420 |
|
51211
|
55.00 | 90.00 | 57.0 | 90.00 | 25.00 | 69000 | 159000 | 1.9 | 2.8 | 610 | AISI52100 | AISI52100 | AISI52100 |
|
S51211
|
55.00 | 90.00 | 57.0 | 90.00 | 25.00 | 69000 | 159000 | 1.9 | 2.8 | 610 | AISI420 | AISI420 | AISI420 |
|
51311
|
55.00 | 105.00 | 57.0 | 105.00 | 35.00 | 102000 | 208000 | 1.7 | 2.4 | 1300 | AISI52100 | AISI52100 | AISI52100 |
|
51112
|
60.00 | 85.00 | 62.0 | 85.00 | 17.00 | 41500 | 113000 | 2.6 | 3.7 | 290 | AISI52100 | AISI52100 | AISI52100 |
|
S51112
|
60.00 | 85.00 | 62.0 | 85.00 | 17.00 | 41500 | 113000 | 2.6 | 3.7 | 290 | AISI420 | AISI420 | AISI420 |
|
51212
|
60.00 | 95.00 | 62.0 | 95.00 | 17.00 | 73000 | 179000 | 1.9 | 2.7 | 690 | AISI52100 | AISI52100 | AISI52100 |
|
S51212
|
60.00 | 95.00 | 62.0 | 95.00 | 17.00 | 73000 | 179000 | 1.9 | 2.7 | 690 | AISI420 | AISI420 | AISI420 |
|
51312
|
60.00 | 110.00 | 62.0 | 110.00 | 35.00 | 100000 | 208000 | 1.6 | 2.2 | 1360 | AISI52100 | AISI52100 | AISI52100 |
|
S51312
|
60.00 | 110.00 | 62.0 | 110.00 | 35.00 | 100000 | 208000 | 1.6 | 2.2 | 1360 | AISI420 | AISI420 | AISI420 |
