双列轴承

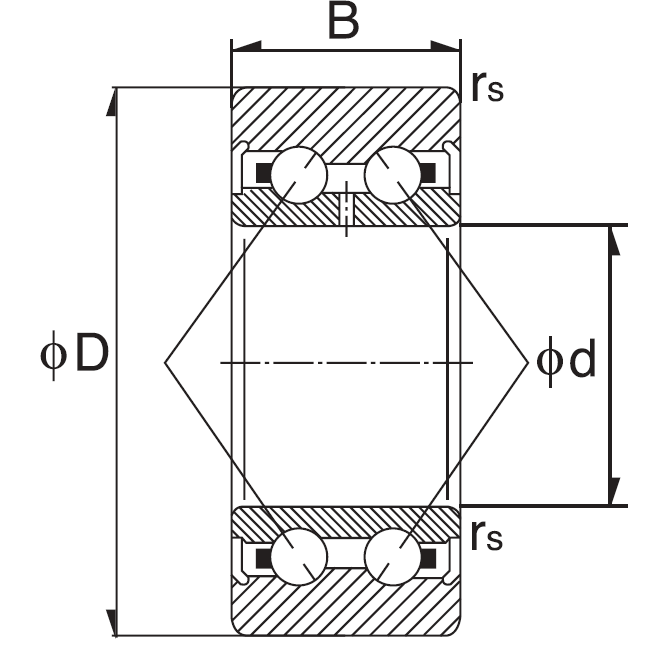

double row drawing
Reference
d = inner ring dimension
D = Outer ring dimension
B = Bearing width
PDF file
Ref d D B Load Rating Limiting Speed Weight Radial Play OR Material IR Material Ball Material
dynamic static Grease Oil
4200 technical drawing 4200 10.00 30.00 14.00 6400 5100 18.0 22.0 54 0.002 - 0.013 AISI52100 AISI52100 AISI52100
S4200 technical drawing S4200 10.00 30.00 14.00 4480 3570 18.0 22.0 54 0.002 - 0.013 AISI440 AISI440 AISI440
4200-2RS technical drawing 4200-2RS 10.00 30.00 14.00 6400 5100 18.0 22.0 54 0.002 - 0.013 AISI52100 AISI52100 AISI52100
S4200-2RS technical drawing S4200-2RS 10.00 30.00 14.00 4480 3570 18.0 22.0 54 0.002 - 0.013 AISI440 AISI440 AISI440
S4201-2RS technical drawing S4201-2RS 12.00 32.00 14.00 4970 3990 17.0 20.0 60 0.003 - 0.018 AISI440 AISI440 AISI440
4201-2RS technical drawing 4201-2RS 12.00 32.00 14.00 7100 5700 17.0 20.0 60 0.003 - 0.018 AISI52100 AISI52100 AISI52100
S4201 technical drawing S4201 12.00 32.00 14.00 4970 3990 17.0 20.0 60 0.003 - 0.018 AISI440 AISI440 AISI440
4201 technical drawing 4201 12.00 32.00 14.00 7100 5700 17.0 20.0 60 0.003 - 0.018 AISI52100 AISI52100 AISI52100
S4202-2RS technical drawing S4202-2RS 15.00 35.00 14.00 5460 4760 14.0 17.0 80 0.003 - 0.018 AISI440 AISI440 AISI440
4202-2RS technical drawing 4202-2RS 15.00 35.00 14.00 7800 6800 14.0 17.0 80 0.003 - 0.018 AISI52100 AISI52100 AISI52100
S4202 technical drawing S4202 15.00 35.00 14.00 5460 4760 14.0 17.0 80 0.003 - 0.018 AISI440 AISI440 AISI440
4202 technical drawing 4202 15.00 35.00 14.00 7800 6800 14.0 17.0 80 0.003 - 0.018 AISI52100 AISI52100 AISI52100
4203 technical drawing 4203 17.00 40.00 16.00 11700 10400 10.0 14.2 100 0.003 - 0.018 AISI52100 AISI52100 AISI52100
S4203 technical drawing S4203 17.00 40.00 16.00 8190 7280 10.0 14.2 100 0.003 - 0.018 AISI440 AISI440 AISI440
4203-2RS technical drawing 4203-2RS 17.00 40.00 16.00 11700 10400 10.0 14.2 100 0.003 - 0.018 AISI52100 AISI52100 AISI52100
S4203-2RS technical drawing S4203-2RS 17.00 40.00 16.00 8190 7280 10.0 14.2 100 0.003 - 0.018 AISI440 AISI440 AISI440
S4204-2RS technical drawing S4204-2RS 20.00 47.00 18.00 11480 11200 9.0 12.4 159 0.005 - 0.020 AISI440 AISI440 AISI440
4204-2RS technical drawing 4204-2RS 20.00 47.00 18.00 16400 16000 9.0 12.4 159 0.005 - 0.020 AISI52100 AISI52100 AISI52100
S4204 technical drawing S4204 20.00 47.00 18.00 11480 11200 9.0 12.4 159 0.005 - 0.020 AISI440 AISI440 AISI440
4204 technical drawing 4204 20.00 47.00 18.00 16400 16000 9.0 12.4 159 0.005 - 0.020 AISI52100 AISI52100 AISI52100
S4205-2RS technical drawing S4205-2RS 25.00 52.00 18.00 11410 11830 7.5 11.0 181 0.005 - 0.020 AISI440 AISI440 AISI440
4205-2RS technical drawing 4205-2RS 25.00 52.00 18.00 16300 16900 7.5 11.0 181 0.005 - 0.020 AISI52100 AISI52100 AISI52100
S4205 technical drawing S4205 25.00 52.00 18.00 11410 11830 7.5 11.0 181 0.005 - 0.020 AISI440 AISI440 AISI440
4205 technical drawing 4205 25.00 52.00 18.00 16300 16900 7.5 11.0 181 0.005 - 0.020 AISI52100 AISI52100 AISI52100
4206 technical drawing 4206 30.00 62.00 20.00 22000 24700 6.4 9.5 277 0.005 - 0.020 AISI52100 AISI52100 AISI52100
S4206 technical drawing S4206 30.00 62.00 20.00 15400 17290 6.4 9.5 277 0.005 - 0.020 AISI440 AISI440 AISI440
4206-2RS technical drawing 4206-2RS 30.00 62.00 20.00 22000 24700 6.4 9.5 277 0.005 - 0.020 AISI52100 AISI52100 AISI52100
S4206-2RS technical drawing S4206-2RS 30.00 62.00 20.00 15400 17290 6.4 9.5 277 0.005 - 0.020 AISI440 AISI440 AISI440
S4207-2RS technical drawing S4207-2RS 35.00 72.00 23.00 18480 21490 5.6 8.2 463 0.006 - 0.020 AISI440 AISI440 AISI440
4207-2RS technical drawing 4207-2RS 35.00 72.00 23.00 26400 30700 5.6 8.2 463 0.006 - 0.020 AISI52100 AISI52100 AISI52100
S4207 technical drawing S4207 35.00 72.00 23.00 18480 21490 5.6 8.2 463 0.006 - 0.020 AISI440 AISI440 AISI440
4207 technical drawing 4207 35.00 72.00 23.00 26400 30700 5.6 8.2 463 0.006 - 0.020 AISI52100 AISI52100 AISI52100
S4208-2RS technical drawing S4208-2RS 40.00 80.00 23.00 23240 29680 4.7 7.3 553 0.006 - 0.020 AISI440 AISI440 AISI440
4208-2RS technical drawing 4208-2RS 40.00 80.00 23.00 33200 42400 4.7 7.3 553 0.006 - 0.020 AISI52100 AISI52100 AISI52100
S4208 technical drawing S4208 40.00 80.00 23.00 23240 29680 4.7 7.3 553 0.006 - 0.020 AISI440 AISI440 AISI440
4208 technical drawing 4208 40.00 80.00 23.00 33200 42400 4.7 7.3 553 0.006 - 0.020 AISI52100 AISI52100 AISI52100
S4209-2RS technical drawing S4209-2RS 45.00 85.00 23.00 22260 30730 4.6 6.8 621 0.006 - 0.023 AISI440 AISI440 AISI440
4209-2RS technical drawing 4209-2RS 45.00 85.00 23.00 31800 43900 4.6 6.8 621 0.006 - 0.023 AISI52100 AISI52100 AISI52100
S4209 technical drawing S4209 45.00 85.00 23.00 22260 30730 4.6 6.8 621 0.006 - 0.023 AISI440 AISI440 AISI440
4209 technical drawing 4209 45.00 85.00 23.00 31800 43900 4.6 6.8 621 0.006 - 0.023 AISI52100 AISI52100 AISI52100
4210 technical drawing 4210 50.00 90.00 28.00 31400 44600 4.2 6.3 635 0.006 - 0.023 AISI52100 AISI52100 AISI52100
S4210 technical drawing S4210 50.00 90.00 28.00 21980 31220 4.2 6.3 635 0.006 - 0.023 AISI440 AISI440 AISI440
4210-2RS technical drawing 4210-2RS 50.00 90.00 28.00 31400 44600 4.2 6.3 635 0.006 - 0.023 AISI52100 AISI52100 AISI52100
S4210-2RS technical drawing S4210-2RS 50.00 90.00 28.00 21980 31220 4.2 6.3 635 0.006 - 0.023 AISI440 AISI440 AISI440
