双列薄壁轴承

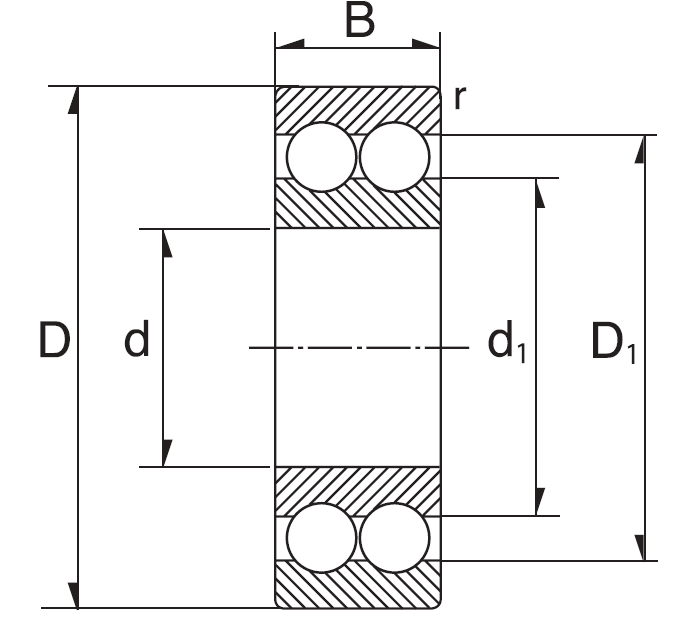

Reference
d = inner ring dimension
D = Outer ring dimension
B = Bearing width
| Ref | d | D | B | Load Rating | Limiting Speed | Weight | Radial Play | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | ||||||||||
3800
|
10.00 | 19.00 | 7.00 | 2120 | 1400 | 18.0 | 8 | 0.002 - 0.013 | AISI52100 | AISI52100 | AISI52100 |
|
3800-2Z
|
10.00 | 19.00 | 7.00 | 2120 | 1400 | 18.0 | 8 | 0.002 - 0.013 | AISI52100 | AISI52100 | AISI52100 |
|
3800-2RS
|
10.00 | 19.00 | 7.00 | 2120 | 1400 | 18.0 | 8 | 0.002 - 0.013 | AISI52100 | AISI52100 | AISI52100 |
|
3801
|
12.00 | 21.00 | 7.00 | 2190 | 1550 | 16.0 | 8 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3801-2Z
|
12.00 | 21.00 | 7.00 | 2190 | 1550 | 16.0 | 8 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3801-2RS
|
12.00 | 21.00 | 7.00 | 2190 | 1550 | 16.0 | 8 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3802-2RS
|
15.00 | 24.00 | 7.00 | 2430 | 1960 | 16.0 | 9 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3802-2Z
|
15.00 | 24.00 | 7.00 | 2430 | 1960 | 16.0 | 9 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3802
|
15.00 | 24.00 | 7.00 | 2430 | 1960 | 16.0 | 9 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3803
|
17.00 | 26.00 | 7.00 | 2480 | 2080 | 14.0 | 15 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3803-2Z
|
17.00 | 26.00 | 7.00 | 2480 | 2080 | 14.0 | 15 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3803-2RS
|
17.00 | 26.00 | 7.00 | 2480 | 2080 | 14.0 | 15 | 0.003 - 0.018 | AISI52100 | AISI52100 | AISI52100 |
|
3804-2RS
|
20.00 | 32.00 | 10.00 | 5800 | 4850 | 10.0 | 20 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3804-2Z
|
20.00 | 32.00 | 10.00 | 5800 | 4850 | 10.0 | 20 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3804
|
20.00 | 32.00 | 10.00 | 5800 | 4850 | 10.0 | 20 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3805
|
25.00 | 37.00 | 10.00 | 6000 | 5600 | 8.5 | 25 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3805-2Z
|
25.00 | 37.00 | 10.00 | 6000 | 5600 | 8.5 | 25 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3805-2RS
|
25.00 | 37.00 | 10.00 | 6000 | 5600 | 8.5 | 25 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3806-2RS
|
30.00 | 42.00 | 10.00 | 6300 | 6100 | 7.0 | 30 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3806-2Z
|
30.00 | 42.00 | 10.00 | 6300 | 6100 | 7.0 | 30 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3806
|
30.00 | 42.00 | 10.00 | 6300 | 6100 | 7.0 | 30 | 0.005 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3807
|
35.00 | 47.00 | 10.00 | 6700 | 7000 | 6.0 | 37 | 0.006 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3807-2Z
|
35.00 | 47.00 | 10.00 | 6700 | 7000 | 6.0 | 37 | 0.006 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3807-2RS
|
35.00 | 47.00 | 10.00 | 6700 | 7000 | 6.0 | 37 | 0.006 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3808
|
40.00 | 52.00 | 10.00 | 7000 | 7800 | 5.3 | 40 | 0.006 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3808-2Z
|
40.00 | 52.00 | 10.00 | 7000 | 7800 | 5.3 | 40 | 0.006 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
|
3808-2RS
|
40.00 | 52.00 | 10.00 | 7000 | 7800 | 5.3 | 40 | 0.006 - 0.020 | AISI52100 | AISI52100 | AISI52100 |
