KR曲线滚轮轴承

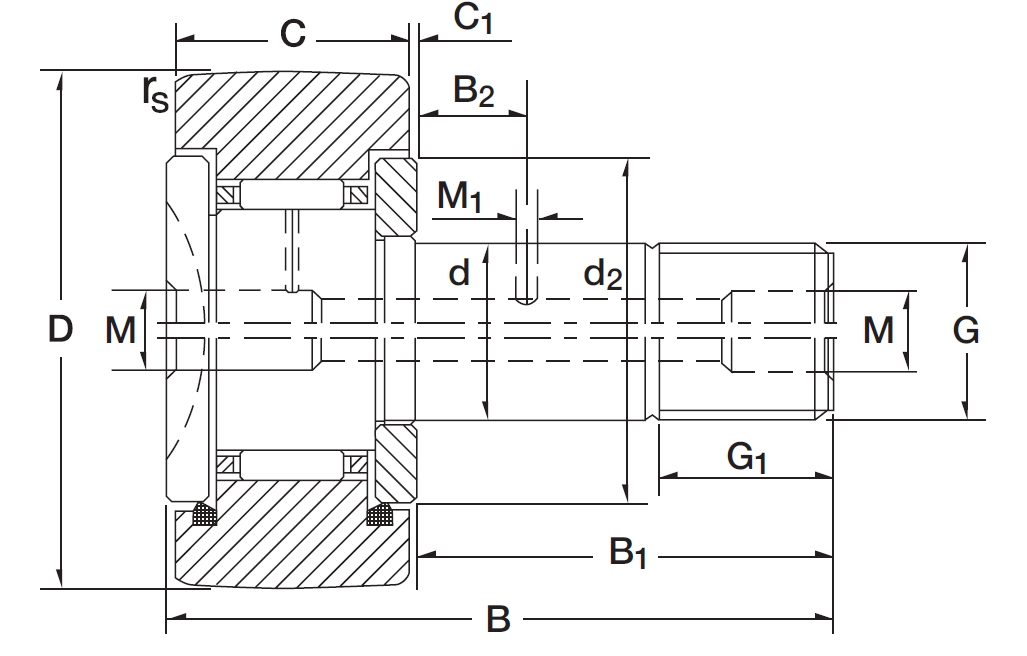

| Ref | d | D | B | C | Outer Diameter | Weight | width Eccentric Collar | Weight | Load Rating | Limiting Speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C N | Co N | Cw N | Cow N | Fr perm | For perm | ||||||||||
KR 16
|
6.00 | 16.00 | 28.00 | 11 | 16 | 18 | KRE 16 | 20 | 3800 | 3750 | 3150 | 3300 | - | - | 22000 |
|
KR 16PP
|
6.00 | 16.00 | 28.00 | 11 | 16 | 18 | KRE 16PP | 20 | 3800 | 3750 | 3150 | 3300 | - | - | 16000 |
|
KRV 16
|
6.00 | 16.00 | 28.00 | 11 | 16 | 20 | KRV 16 | 22 | 6400 | 8500 | 4850 | 6500 | - | - | 8500 |
|
KRV 16PP
|
6.00 | 16.00 | 28.00 | 11 | 16 | 20 | KRVE 16PP | 22 | 6400 | 8500 | 4850 | 6500 | - | - | 8500 |
|
KRV 19PP
|
8.00 | 19.00 | 32.00 | 11 | 19 | 32 | KRVE 19PP | 35 | 7300 | 10800 | 5500 | 7900 | - | - | 7000 |
|
KRV 19
|
8.00 | 19.00 | 32.00 | 11 | 19 | 32 | KRVE 19 | 35 | 7300 | 10800 | 5500 | 7900 | - | - | 7000 |
|
KR 19PP
|
8.00 | 19.00 | 32.00 | 11 | 19 | 28 | KRE 19PP | 31 | 4250 | 4600 | 3500 | 3900 | - | - | 14000 |
|
KR 19
|
8.00 | 19.00 | 32.00 | 11 | 19 | 28 | KRE 19 | 31 | 4250 | 4600 | 3500 | 3900 | - | - | 20000 |
|
KRV 22PP
|
10.00 | 22.00 | 36.00 | 12 | 22 | 45 | KRVE 22PP | 49 | 8600 | 12900 | 6300 | 9100 | - | - | 6000 |
|
KRV 22
|
10.00 | 22.00 | 36.00 | 12 | 22 | 45 | KRVE 22 | 49 | 8600 | 12900 | 6300 | 9100 | - | - | 6000 |
|
KR 22PP
|
10.00 | 22.00 | 36.00 | 12 | 22 | 44 | KRE 22PP | 48 | 5700 | 6500 | 4450 | 5200 | - | - | 11000 |
|
KR 22
|
10.00 | 22.00 | 36.00 | 12 | 22 | 44 | KRE 22 | 48 | 5700 | 6500 | 4450 | 5200 | - | - | 16000 |
|
KR 26
|
10.00 | 26.00 | 36.00 | 12 | 26 | 58 | KRE 26 | 62 | 5700 | 6500 | 5100 | 6300 | - | - | 16000 |
|
KR 26PP
|
10.00 | 26.00 | 36.00 | 12 | 26 | 58 | KRE 26PP | 62 | 5700 | 6500 | 5100 | 6300 | - | - | 11000 |
|
KRV 26
|
10.00 | 26.00 | 36.00 | 12 | 26 | 61 | KRVE 26 | 65 | 8600 | 12900 | 7300 | 11300 | - | - | 6000 |
|
KRV 26PP
|
10.00 | 26.00 | 36.00 | 12 | 26 | 61 | KRVE 26PP | 65 | 8600 | 12900 | 7300 | 11300 | - | - | 6000 |
|
KRV 30PP
|
12.00 | 30.00 | 40.00 | 14 | 30 | 89 | KRVE 30PP | 95 | 12200 | 19000 | 9500 | 14600 | - | - | 4500 |
|
KRV 30
|
12.00 | 30.00 | 40.00 | 14 | 30 | 89 | KRVE 30 | 95 | 12200 | 19000 | 9500 | 14600 | - | - | 4500 |
|
KR 30PP
|
12.00 | 30.00 | 40.00 | 14 | 30 | 87 | KRE 30PP | 93 | 8100 | 9700 | 6800 | 8400 | - | - | 8300 |
|
KR 30
|
12.00 | 30.00 | 40.00 | 14 | 30 | 87 | KRE 30 | 93 | 8100 | 9700 | 6800 | 8400 | - | - | 11000 |
|
KR 32
|
12.00 | 32.00 | 40.00 | 14 | 32 | 98 | KRE 32 | 104 | 8100 | 9700 | 7100 | 9000 | - | - | 11000 |
|
KR 32PP
|
12.00 | 32.00 | 40.00 | 14 | 32 | 98 | KRE 32PP | 104 | 8100 | 9700 | 7100 | 9000 | - | - | 8300 |
|
KRV 32
|
12.00 | 32.00 | 40.00 | 14 | 32 | 100 | KRVE 32 | 106 | 12200 | 19000 | 10000 | 15800 | - | - | 4500 |
|
KRV 32PP
|
12.00 | 32.00 | 40.00 | 14 | 32 | 100 | KRVE 32PP | 106 | 12200 | 19000 | 10000 | 15800 | - | - | 4500 |
|
NUKR 35
|
16.00 | 35.00 | 52.00 | 18 | 35 | 164 | NUKRE 35 | 177 | 23000 | 27000 | 16000 | 18300 | 8300 | 16400 | 6500 |
|
KRV 35PP
|
16.00 | 35.00 | 52.00 | 18 | 35 | 171 | KRVE 35PP | 184 | 18300 | 35000 | 12800 | 23000 | - | - | 3400 |
|
KRV 35
|
16.00 | 35.00 | 52.00 | 18 | 35 | 171 | KRVE 35 | 184 | 18300 | 35000 | 12800 | 23000 | - | - | 3400 |
|
KR 35PP
|
16.00 | 35.00 | 52.00 | 18 | 35 | 169 | KRE 35PP | 182 | 12900 | 19000 | 9700 | 14100 | - | - | 7000 |
|
KR 35
|
16.00 | 35.00 | 52.00 | 18 | 35 | 169 | KRE 35 | 182 | 12900 | 19000 | 9700 | 14100 | - | - | 7000 |
|
KR 40
|
18.00 | 40.00 | 58.00 | 20 | 40 | 274 | KRE 40 | 263 | 14200 | 20400 | 10900 | 15500 | - | - | 6000 |
|
KR 40PP
|
18.00 | 40.00 | 58.00 | 20 | 40 | 247 | KRE 40PP | 263 | 14200 | 20400 | 10900 | 15500 | - | - | 6000 |
|
KRV 40
|
18.00 | 40.00 | 58.00 | 20 | 40 | 249 | KRVE 40 | 265 | 21000 | 39500 | 14800 | 26500 | - | - | 2900 |
|
KRV 40PP
|
18.00 | 40.00 | 58.00 | 20 | 40 | 249 | KRVE 40PP | 265 | 21000 | 39500 | 14800 | 26500 | - | - | 2900 |
|
NUKR 40
|
18.00 | 40.00 | 58.00 | 20 | 40 | 242 | NUKRE 40 | 258 | 24800 | 31000 | 18500 | 22800 | 13200 | 22800 | 5500 |
