滚针轴承

needle roller drawing
Reference

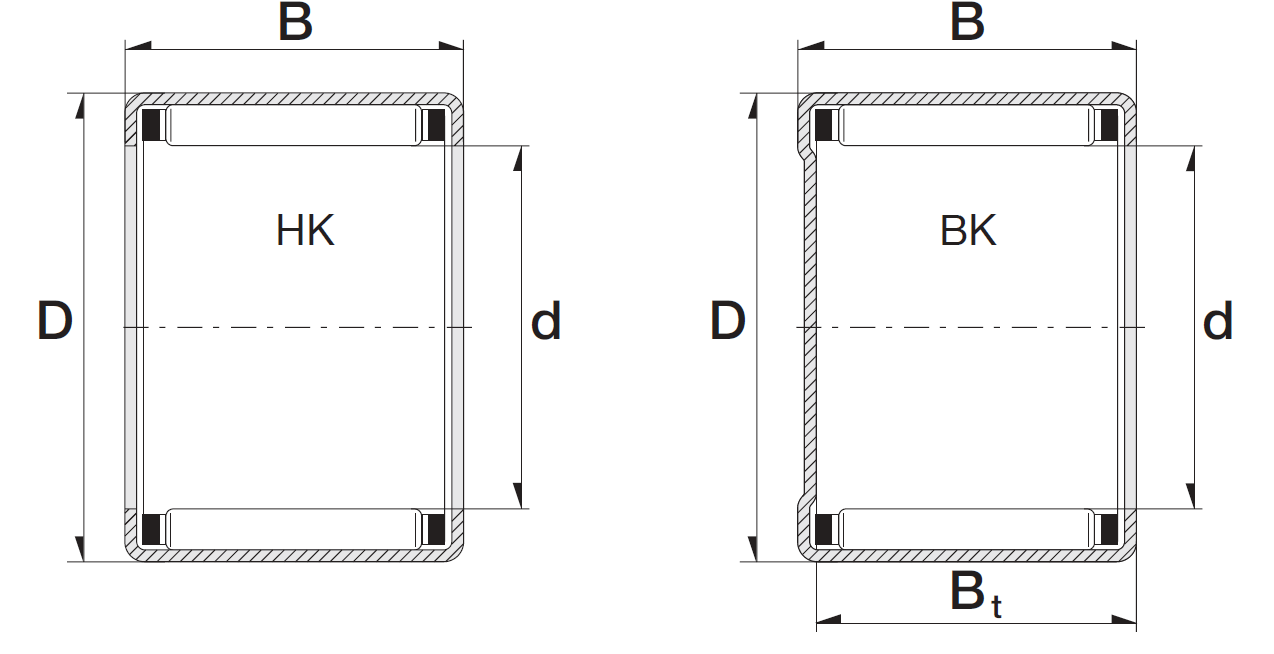

d = inner ring dimension
D = Outer ring dimension
B = Bearing width
PDF file
Ref d D B Bt Load Rating Limiting Speed Weight OR Material IR Material Ball Material
dynamic static
BK0306 technical drawing BK0306 3.00 6.50 6 1230 840 46000 1 AISI52100 AISI52100 AISI52100
HK0306-TV technical drawing HK0306-TV 3.00 6.50 6 1230 840 46000 1 AISI52100 AISI52100 AISI52100
HK0408 technical drawing HK0408 4.00 8.00 8 1780 1310 41000 2 AISI52100 AISI52100 AISI52100
BK0509 technical drawing BK0509 5.00 9.00 9 2400 1990 38000 2 AISI52100 AISI52100 AISI52100
HK0509 technical drawing HK0509 5.00 9.00 9 2400 1990 38000 2 AISI52100 AISI52100 AISI52100
HK0606 technical drawing HK0606 6.00 10.00 6 1610 1220 35000 1.5 AISI52100 AISI52100 AISI52100
HK0608 technical drawing HK0608 6.00 10.00 8 - 2030 1650 35000 2.1 AISI52100 AISI52100 AISI52100
HK0609 technical drawing HK0609 6.00 10.00 9 7.4 2850 2600 35000 2.5 AISI52100 AISI52100 AISI52100
BK0609 technical drawing BK0609 6.00 10.00 9 7.4 2850 2600 35000 2.6 AISI52100 AISI52100 AISI52100
HK0709 technical drawing HK0709 7.00 11.00 9 7.4 3100 2950 31000 2.6 AISI52100 AISI52100 AISI52100
BK0709 technical drawing BK0709 7.00 11.00 9 7.4 3100 2950 31000 2.9 AISI52100 AISI52100 AISI52100
HK0810-RS technical drawing HK0810-RS 8.00 12.00 10 3800 3950 28000 3 AISI52100 AISI52100 AISI52100
HK0810-2RS technical drawing HK0810-2RS 8.00 12.00 10 3800 3950 28000 3.2 AISI52100 AISI52100 AISI52100
HK0810 technical drawing HK0810 8.00 12.00 10 8.4 3800 3950 28000 3 AISI52100 AISI52100 AISI52100
BK0810 technical drawing BK0810 8.00 12.00 10 8.4 3800 3950 28000 3.4 AISI52100 AISI52100 AISI52100
HK0812-2RS technical drawing HK0812-2RS 8.00 12.00 12 3800 3950 28000 3.3 AISI52100 AISI52100 AISI52100
HK0812-RS technical drawing HK0812-RS 8.00 12.00 12 3800 3950 28000 3.1 AISI52100 AISI52100 AISI52100
HK0808 technical drawing HK0808 8.00 12.00 8 6.4 2750 2600 28000 2.7 AISI52100 AISI52100 AISI52100
BK0808 technical drawing BK0808 8.00 12.00 8 6.4 2750 2600 28000 3 AISI52100 AISI52100 AISI52100
HK0910 technical drawing HK0910 9.00 13.00 10 8.4 4250 4650 25500 4 AISI52100 AISI52100 AISI52100
BK0910 technical drawing BK0910 9.00 13.00 10 8.4 4250 4650 25500 4.3 AISI52100 AISI52100 AISI52100
BK0912 technical drawing BK0912 9.00 13.00 12 10.4 5300 6300 25500 4.9 AISI52100 AISI52100 AISI52100
HK0912 technical drawing HK0912 9.00 13.00 12 10.4 5300 6300 25500 4.6 AISI52100 AISI52100 AISI52100
HK0908 technical drawing HK0908 9.00 13.00 8 - 3550 3750 25500 3 AISI52100 AISI52100 AISI52100
BK1010 technical drawing BK1010 10.00 14.00 10 8.4 4400 5100 23300 4.3 AISI52100 AISI52100 AISI52100
HK1010 technical drawing HK1010 10.00 14.00 10 8.4 4400 5100 23300 4.1 AISI52100 AISI52100 AISI52100
HK1012-RS technical drawing HK1012-RS 10.00 14.00 12 5500 6800 23300 4.2 AISI52100 AISI52100 AISI52100
HK1012-2RS technical drawing HK1012-2RS 10.00 14.00 12 5500 6800 23300 4.3 AISI52100 AISI52100 AISI52100
HK1012 technical drawing HK1012 10.00 14.00 12 10.4 5500 6800 23300 48 AISI52100 AISI52100 AISI52100
BK1012 technical drawing BK1012 10.00 14.00 12 10.4 5500 6800 23300 5 AISI52100 AISI52100 AISI52100
HK1014-2RS technical drawing HK1014-2RS 10.00 14.00 14 4400 5100 23300 4.2 AISI52100 AISI52100 AISI52100
BK1015 technical drawing BK1015 10.00 14.00 15 13.4 6800 8800 23300 6.2 AISI52100 AISI52100 AISI52100
HK1015 technical drawing HK1015 10.00 14.00 15 13.4 6800 8800 23300 6 AISI52100 AISI52100 AISI52100
BK1210 technical drawing BK1210 12.00 16.00 10 8.4 4950 6200 20000 5.2 AISI52100 AISI52100 AISI52100
HK1210 technical drawing HK1210 12.00 16.00 10 8.4 4950 6200 20000 4.6 AISI52100 AISI52100 AISI52100
HK1214-2RS technical drawing HK1214-2RS 12.00 16.00 14 6500 7300 20000 8 AISI52100 AISI52100 AISI52100
HK1212 technical drawing HK1212 12.00 18.00 12 9.3 6500 7300 18700 9 AISI52100 AISI52100 AISI52100
BK1212 technical drawing BK1212 12.00 18.00 12 9.3 6500 7300 18700 10 AISI52100 AISI52100 AISI52100
HK1216-2RS technical drawing HK1216-2RS 12.00 18.00 14 6500 7300 18700 10 AISI52100 AISI52100 AISI52100
HK1214-RS technical drawing HK1214-RS 12.00 18.00 14 6500 7300 18700 10 AISI52100 AISI52100 AISI52100
BK1312 technical drawing BK1312 13.00 19.00 12 9.3 6800 7900 17500 11 AISI52100 AISI52100 AISI52100
HK1312 technical drawing HK1312 13.00 19.00 12 9.3 6300 7300 17500 10 AISI52100 AISI52100 AISI52100
BK1412 technical drawing BK1412 14.00 20.00 12 9.3 7100 8500 16500 12 AISI52100 AISI52100 AISI52100
HK1412 technical drawing HK1412 14.00 20.00 12 9.3 7100 8500 16500 10.5 AISI52100 AISI52100 AISI52100
HK1416-2RS technical drawing HK1416-2RS 14.00 20.00 14 7100 8500 16500 12 AISI52100 AISI52100 AISI52100
HK1414-RS technical drawing HK1414-RS 14.00 20.00 14 7100 8500 16500 12 AISI52100 AISI52100 AISI52100
BK1512 technical drawing BK1512 15.00 21.00 12 9.3 7900 9400 15600 13 AISI52100 AISI52100 AISI52100
HK1512 technical drawing HK1512 15.00 21.00 12 9.3 7900 9400 15600 11 AISI52100 AISI52100 AISI52100
HK1516-2RS technical drawing HK1516-2RS 15.00 21.00 14 10500 14400 15600 12 AISI52100 AISI52100 AISI52100
HK1514-RS technical drawing HK1514-RS 15.00 21.00 14 7800 9800 15600 12 AISI52100 AISI52100 AISI52100
HK1516 technical drawing HK1516 15.00 21.00 16 13.3 10500 14400 15600 15 AISI52100 AISI52100 AISI52100
BK1516 technical drawing BK1516 15.00 21.00 16 13.3 10500 14400 15600 17 AISI52100 AISI52100 AISI52100
HK1518-RS technical drawing HK1518-RS 15.00 21.00 18 10500 14400 15600 16 AISI52100 AISI52100 AISI52100
HK1520-2RS technical drawing HK1520-2RS 15.00 21.00 18 10500 14400 15600 18 AISI52100 AISI52100 AISI52100
HK1522-ZW technical drawing HK1522-ZW 15.00 21.00 22 13400 19500 15600 20 AISI52100 AISI52100 AISI52100
HK1612 technical drawing HK1612 16.00 22.00 12 9.3 7600 9700 14700 12 AISI52100 AISI52100 AISI52100
BK1612 technical drawing BK1612 16.00 22.00 12 9.3 7600 9700 14700 14 AISI52100 AISI52100 AISI52100
HK1614-RS technical drawing HK1614-RS 16.00 22.00 14 7600 9700 14700 13 AISI52100 AISI52100 AISI52100
HK1616-2RS technical drawing HK1616-2RS 16.00 22.00 14 10900 15300 14700 13 AISI52100 AISI52100 AISI52100
BK1616 technical drawing BK1616 16.00 22.00 16 13.3 10900 15300 14700 18 AISI52100 AISI52100 AISI52100
HK1616 technical drawing HK1616 16.00 22.00 16 13.3 10900 15300 14700 16 AISI52100 AISI52100 AISI52100
HK1620-2RS technical drawing HK1620-2RS 16.00 22.00 20 10900 15300 14700 18 AISI52100 AISI52100 AISI52100
BK1622-ZW technical drawing BK1622-ZW 16.00 22.00 22 13100 19400 14700 24 AISI52100 AISI52100 AISI52100
HK1622-ZW technical drawing HK1622-ZW 16.00 22.00 22 13100 19400 14700 22 AISI52100 AISI52100 AISI52100
HK1712 technical drawing HK1712 17.00 23.00 12 - 7900 10300 14000 12 AISI52100 AISI52100 AISI52100
BK1812 technical drawing BK1812 18.00 24.00 12 9.3 8100 10900 13300 15 AISI52100 AISI52100 AISI52100
HK1812 technical drawing HK1812 18.00 24.00 12 9.3 8100 10900 13300 13 AISI52100 AISI52100 AISI52100
HK1816-2RS technical drawing HK1816-2RS 18.00 24.00 14 11600 17300 13300 15 AISI52100 AISI52100 AISI52100
HK1814-RS technical drawing HK1814-RS 18.00 24.00 14 8100 10900 13300 14 AISI52100 AISI52100 AISI52100
HK1816 technical drawing HK1816 18.00 24.00 16 13.3 11600 17300 13300 18 AISI52100 AISI52100 AISI52100
BK1816 technical drawing BK1816 18.00 24.00 16 13.3 11600 17300 13300 20 AISI52100 AISI52100 AISI52100
HK2010 technical drawing HK2010 20.00 26.00 10 - 6400 8200 12200 12 AISI52100 AISI52100 AISI52100
HK2012 technical drawing HK2012 20.00 26.00 12 - 8600 12100 12200 14 AISI52100 AISI52100 AISI52100
BK2016 technical drawing BK2016 20.00 26.00 16 13.3 12700 20100 12200 22 AISI52100 AISI52100 AISI52100
HK2016 technical drawing HK2016 20.00 26.00 16 13.3 12700 20100 12200 19 AISI52100 AISI52100 AISI52100
HK2016-2RS technical drawing HK2016-2RS 20.00 26.00 16 12700 20100 12200 18 AISI52100 AISI52100 AISI52100
HK2020-2RS technical drawing HK2020-2RS 20.00 26.00 18 15700 26000 12200 23 AISI52100 AISI52100 AISI52100
HK2018-RS technical drawing HK2018-RS 20.00 26.00 18 12700 20100 12200 21 AISI52100 AISI52100 AISI52100
HK2020 technical drawing HK2020 20.00 26.00 20 17.3 15700 26000 12000 24 AISI52100 AISI52100 AISI52100
BK2020 technical drawing BK2020 20.00 26.00 20 17.3 15700 26000 12200 27 AISI52100 AISI52100 AISI52100
HK2030-ZW technical drawing HK2030-ZW 20.00 26.00 30 21800 40000 12200 35 AISI52100 AISI52100 AISI52100
HK2210 technical drawing HK2210 22.00 28.00 10 - 7500 10500 11200 13 AISI52100 AISI52100 AISI52100
BK2212 technical drawing BK2212 22.00 28.00 12 9.3 9100 13400 11200 18 AISI52100 AISI52100 AISI52100
HK2212 technical drawing HK2212 22.00 28.00 12 9.3 9100 13400 11200 15 AISI52100 AISI52100 AISI52100
HK2216-2RS technical drawing HK2216-2RS 22.00 28.00 14 13400 22100 11200 16 AISI52100 AISI52100 AISI52100
HK2214-RS technical drawing HK2214-RS 22.00 28.00 14 9100 13400 11200 16 AISI52100 AISI52100 AISI52100
HK2216 technical drawing HK2216 22.00 28.00 16 13.3 13400 22100 11200 21 AISI52100 AISI52100 AISI52100
BK2216 technical drawing BK2216 22.00 28.00 16 13.3 13400 22100 11200 24 AISI52100 AISI52100 AISI52100
HK2218-RS technical drawing HK2218-RS 22.00 28.00 18 13400 22100 11200 24 AISI52100 AISI52100 AISI52100
HK2220-2R5 technical drawing HK2220-2R5 22.00 28.00 18 16500 29000 11200 24 AISI52100 AISI52100 AISI52100
HK2220 technical drawing HK2220 22.00 28.00 20 - 16500 29000 11200 26 AISI52100 AISI52100 AISI52100
HK2512 technical drawing HK2512 25.00 32.00 12 - 11000 15200 9800 20 AISI52100 AISI52100 AISI52100
BK2516 technical drawing BK2516 25.00 32.00 16 15600 24000 9800 27 AISI52100 AISI52100 AISI52100
HK2516 technical drawing HK2516 25.00 32.00 16 - 15600 24000 9800 27 AISI52100 AISI52100 AISI52100
HK2516-2RS technical drawing HK2516-2RS 25.00 32.00 16 15600 24000 9800 27 AISI52100 AISI52100 AISI52100
HK2518-RS technical drawing HK2518-RS 25.00 32.00 18 15600 24000 9800 29 AISI52100 AISI52100 AISI52100
HK2520-2RS technical drawing HK2520-2RS 25.00 32.00 18 19900 33000 9800 29 AISI52100 AISI52100 AISI52100
BK2520 technical drawing BK2520 25.00 32.00 20 17.3 19900 33000 9800 38 AISI52100 AISI52100 AISI52100
HK2520 technical drawing HK2520 25.00 32.00 20 17.3 19900 33000 9800 33 AISI52100 AISI52100 AISI52100
HK2524-2RS technical drawing HK2524-2RS 25.00 32.00 24 19900 33000 9800 40 AISI52100 AISI52100 AISI52100
HK2526 technical drawing HK2526 25.00 32.00 26 23.3 25500 45000 9800 44 AISI52100 AISI52100 AISI52100
BK2526 technical drawing BK2526 25.00 32.00 26 23.3 25500 45000 9800 48 AISI52100 AISI52100 AISI52100
HK2530-2RS technical drawing HK2530-2RS 25.00 32.00 30 25500 45000 9800 47 AISI52100 AISI52100 AISI52100
BK2538-ZW technical drawing BK2538-ZW 25.00 32.00 38 34000 66000 9800 68 AISI52100 AISI52100 AISI52100
HK2538.ZW technical drawing HK2538.ZW 25.00 32.00 38 34000 66000 9800 64 AISI52100 AISI52100 AISI52100
HK2816 technical drawing HK2816 28.00 35.00 16 - 16400 26500 8900 29 AISI52100 AISI52100 AISI52100
HK2818-RS technical drawing HK2818-RS 28.00 35.00 18 16400 26500 8900 31 AISI52100 AISI52100 AISI52100
HK2820-2RS technical drawing HK2820-2RS 28.00 35.00 18 20900 26500 8900 34 AISI52100 AISI52100 AISI52100
HK2820 technical drawing HK2820 28.00 35.00 20 - 20900 36000 8900 36 AISI52100 AISI52100 AISI52100
BK3012 technical drawing BK3012 30.00 37.00 12 9.3 12100 18200 8400 28 AISI52100 AISI52100 AISI52100
HK3012 technical drawing HK3012 30.00 37.00 12 9.3 12100 18200 8400 23 AISI52100 AISI52100 AISI52100
HK3016-2RS technical drawing HK3016-2RS 30.00 37.00 16 17200 29000 8400 31 AISI52100 AISI52100 AISI52100
HK3016 technical drawing HK3016 30.00 37.00 16 13.3 17200 29000 8400 31 AISI52100 AISI52100 AISI52100
BK3016 technical drawing BK3016 30.00 37.00 16 13.3 17200 29000 8400 38 AISI52100 AISI52100 AISI52100
HK3018-RS technical drawing HK3018-RS 30.00 37.00 18 17200 29000 8400 37 AISI52100 AISI52100 AISI52100
HK3020-2RS technical drawing HK3020-2RS 30.00 37.00 18 22000 39500 8400 37 AISI52100 AISI52100 AISI52100
HK3020 technical drawing HK3020 30.00 37.00 20 17.3 22000 39500 8500 39 AISI52100 AISI52100 AISI52100
BK3020 technical drawing BK3020 30.00 37.00 20 17.3 22000 39500 8400 47 AISI52100 AISI52100 AISI52100
HK3022 technical drawing HK3022 30.00 37.00 22 24800 46000 8400 42 AISI52100 AISI52100 AISI52100
HK3024-2RS technical drawing HK3024-2RS 30.00 37.00 24 22000 39500 8400 44 AISI52100 AISI52100 AISI52100
HK3026 technical drawing HK3026 30.00 37.00 26 23.3 28000 54000 8400 51 AISI52100 AISI52100 AISI52100
BK3026 technical drawing BK3026 30.00 37.00 26 23.3 28000 54000 8400 58 AISI52100 AISI52100 AISI52100
HK3038-ZW technical drawing HK3038-ZW 30.00 37.00 38 37500 79000 8400 76 AISI52100 AISI52100 AISI52100
BK3038-ZW technical drawing BK3038-ZW 30.00 37.00 38 37500 79000 8400 84 AISI52100 AISI52100 AISI52100
HK3220 technical drawing HK3220 32.00 39.00 20 23000 42500 7900 40.6 AISI52100 AISI52100 AISI52100
HK3224 technical drawing HK3224 32.00 39.00 24 27500 54000 7900 49 AISI52100 AISI52100 AISI52100
HK3512 technical drawing HK3512 35.00 42.00 12 - 13100 21300 7300 27 AISI52100 AISI52100 AISI52100
HK3516-2RS technical drawing HK3516-2RS 35.00 42.00 16 18700 33500 7300 32 AISI52100 AISI52100 AISI52100
HK3516 technical drawing HK3516 35.00 42.00 16 - 18700 33500 7300 36 AISI52100 AISI52100 AISI52100
HK3518-RS technical drawing HK3518-RS 35.00 42.00 18 18700 33500 7300 39 AISI52100 AISI52100 AISI52100
HK3520-2RS technical drawing HK3520-2RS 35.00 42.00 18 18700 46000 7300 41 AISI52100 AISI52100 AISI52100
BK3520 technical drawing BK3520 35.00 42.00 20 17.3 23800 46000 7300 53 AISI52100 AISI52100 AISI52100
HK3520 technical drawing HK3520 35.00 42.00 20 17.3 23800 46000 7300 44 AISI52100 AISI52100 AISI52100
HK4012 technical drawing HK4012 40.00 47.00 12 - 14000 24300 6400 30 AISI52100 AISI52100 AISI52100
HK4016 technical drawing HK4016 40.00 47.00 16 - 20000 38500 6400 39 AISI52100 AISI52100 AISI52100
HK4016-2RS technical drawing HK4016-2RS 40.00 47.00 16 20000 38500 6400 37 AISI52100 AISI52100 AISI52100
HK4020-2RS technical drawing HK4020-2RS 40.00 47.00 18 25500 52000 6400 48 AISI52100 AISI52100 AISI52100
HK4018-RS technical drawing HK4018-RS 40.00 47.00 18 20000 38500 6400 45 AISI52100 AISI52100 AISI52100
BK4020 technical drawing BK4020 40.00 47.00 20 17.3 25500 52000 6400 62 AISI52100 AISI52100 AISI52100
HK4020 technical drawing HK4020 40.00 47.00 20 17.3 25500 52000 6400 54 AISI52100 AISI52100 AISI52100
HK4512 technical drawing HK4512 45.00 52.00 12 - 14900 27500 5800 33 AISI52100 AISI52100 AISI52100
HK4516 technical drawing HK4516 45.00 52.00 16 - 21300 43000 5800 46 AISI52100 AISI52100 AISI52100
HK4520-2RS technical drawing HK4520-2RS 45.00 52.00 18 27000 59000 5800 50 AISI52100 AISI52100 AISI52100
HK4518-RS technical drawing HK4518-RS 45.00 52.00 18 21300 43000 5800 50 AISI52100 AISI52100 AISI52100
HK4520 technical drawing HK4520 45.00 52.00 20 17.3 27000 59000 5800 56 AISI52100 AISI52100 AISI52100
BK4520 technical drawing BK4520 45.00 52.00 20 17.3 27000 59000 5800 72 AISI52100 AISI52100 AISI52100
HK5020 technical drawing HK5020 50.00 58.00 20 - 31000 63000 5200 70 AISI52100 AISI52100 AISI52100
HK5022-RS technical drawing HK5022-RS 50.00 58.00 22 31000 63000 5200 76 AISI52100 AISI52100 AISI52100
HK5024-2RS technical drawing HK5024-2RS 50.00 58.00 22 31000 63000 5200 76 AISI52100 AISI52100 AISI52100
HK5025 technical drawing HK5025 50.00 58.00 25 - 38500 84000 5200 90 AISI52100 AISI52100 AISI52100
HK5520 technical drawing HK5520 55.00 63.00 20 - 31500 67000 4750 74 AISI52100 AISI52100 AISI52100
HK5528 technical drawing HK5528 55.00 63.00 28 - 44000 103000 4750 105 AISI52100 AISI52100 AISI52100
HK6012 technical drawing HK6012 60.00 68.00 12 - 17400 32000 4400 49 AISI52100 AISI52100 AISI52100
HK6020 technical drawing HK6020 60.00 68.00 20 - 33500 75000 4400 81 AISI52100 AISI52100 AISI52100
HK6032 technical drawing HK6032 60.00 68.00 32 - 53000 135000 4400 136 AISI52100 AISI52100 AISI52100
