不锈钢轴承座 (SP)外球面轴承及座子

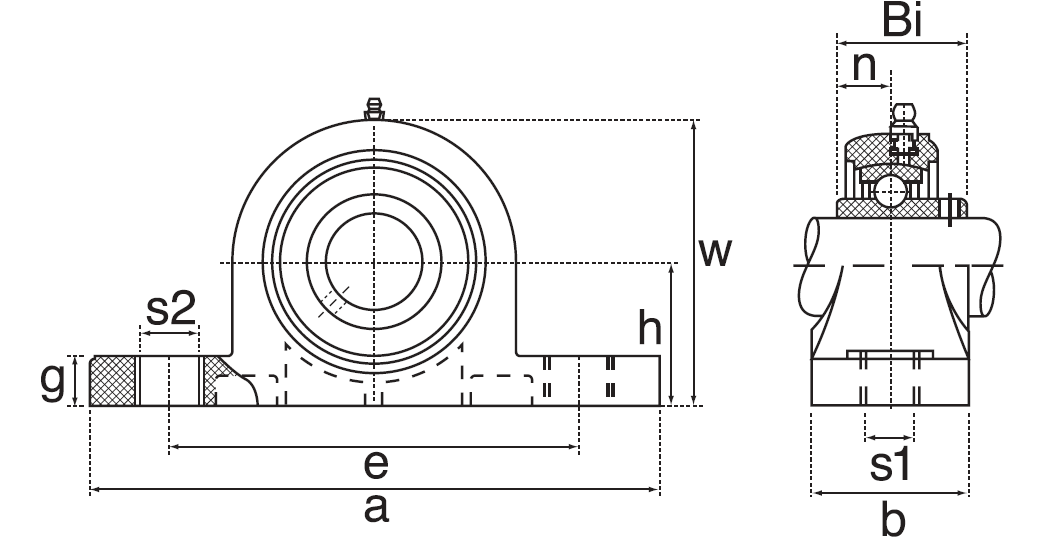

不锈钢轴承座 (SP)
| Ref | Da | h | a | e | b | S1 | S2 | g | w | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|
SP204
|
47.00 | 33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 17.50 | 15.10 | 65.10 | 0.69 | SUC204 |
|
SP205
|
52.00 | 36.50 | 140.00 | 105.00 | 38.00 | 12.50 | 17.50 | 16.00 | 70.00 | 0.74 | SUC205 |
|
SP206
|
62.00 | 42.90 | 165.00 | 121.00 | 48.00 | 14.30 | 21.00 | 18.00 | 83.00 | 1.29 | SUC206 |
|
SP207
|
72.00 | 47.60 | 167.00 | 127.00 | 48.00 | 14.30 | 22.00 | 19.00 | 94.00 | 1.42 | SUC207 |
|
SP208
|
80.00 | 49.20 | 184.00 | 137.00 | 54.00 | 14.30 | 22.00 | 19.00 | 100.00 | 1.82 | SUC208 |
|
SP209
|
85.00 | 54.00 | 190.00 | 146.00 | 54.00 | 15.00 | 22.00 | 20.00 | 109.00 | 2.09 | SUC209 |
|
SP210
|
90.00 | 57.20 | 206.00 | 159.00 | 60.00 | 18.00 | 24.00 | 22.00 | 114.00 | 2.38 | SUC210 |
|
SP211
|
100.00 | 63.50 | 219.00 | 171.00 | 60.00 | 20.00 | 25.00 | 23.00 | 126.00 | 2.55 | SUC211 |
|
SP212
|
110.00 | 69.80 | 241.00 | 184.00 | 70.00 | 20.00 | 25.00 | 25.00 | 138.00 | 3.40 | SUC212 |

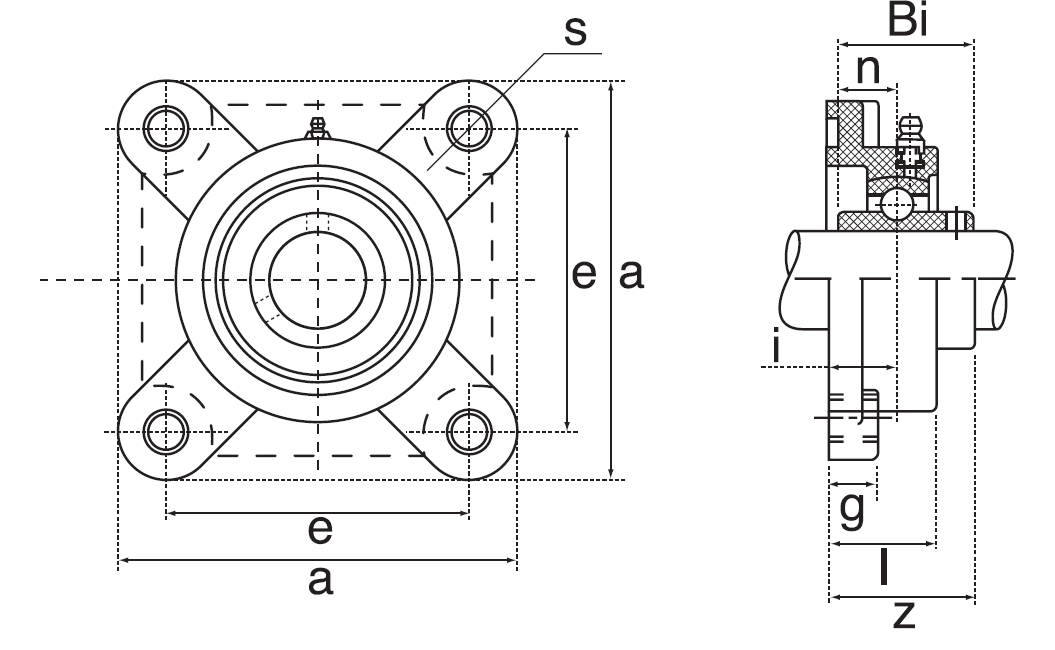

不锈钢轴承座 (SF)
| Ref | Da | a | e | i | l | g | s | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|
|
SF204
|
47.00 | 86.00 | 63.50 | 15.10 | 25.40 | 12.00 | 11.00 | 0.47 | SUC204 |
|
SF205
|
52.00 | 95.00 | 70.00 | 15.90 | 27.00 | 14.00 | 11.50 | 0.65 | SUC205 |
|
SF206
|
62.00 | 108.00 | 82.50 | 17.90 | 30.00 | 14.00 | 13.10 | 0.85 | SUC206 |
|
SF207
|
72.00 | 117.00 | 92.00 | 19.10 | 33.00 | 14.30 | 13.10 | 1.03 | SUC207 |
|
SF208
|
80.00 | 130.00 | 101.60 | 21.00 | 36.00 | 14.30 | 14.00 | 1.38 | SUC208 |
|
SF209
|
85.00 | 137.00 | 104.80 | 21.80 | 37.00 | 14.30 | 16.00 | 1.50 | SUC209 |
|
SF210
|
90.00 | 143.00 | 111.00 | 21.80 | 38.00 | 15.10 | 16.00 | 1.63 | SUC210 |
|
SF211
|
100.00 | 162.00 | 130.00 | 25.00 | 43.00 | 19.50 | 19.00 | 3.25 | SUC211 |
|
SF212
|
110.00 | 175.00 | 143.00 | 29.00 | 48.00 | 19.50 | 19.00 | 4.20 | SUC212 |

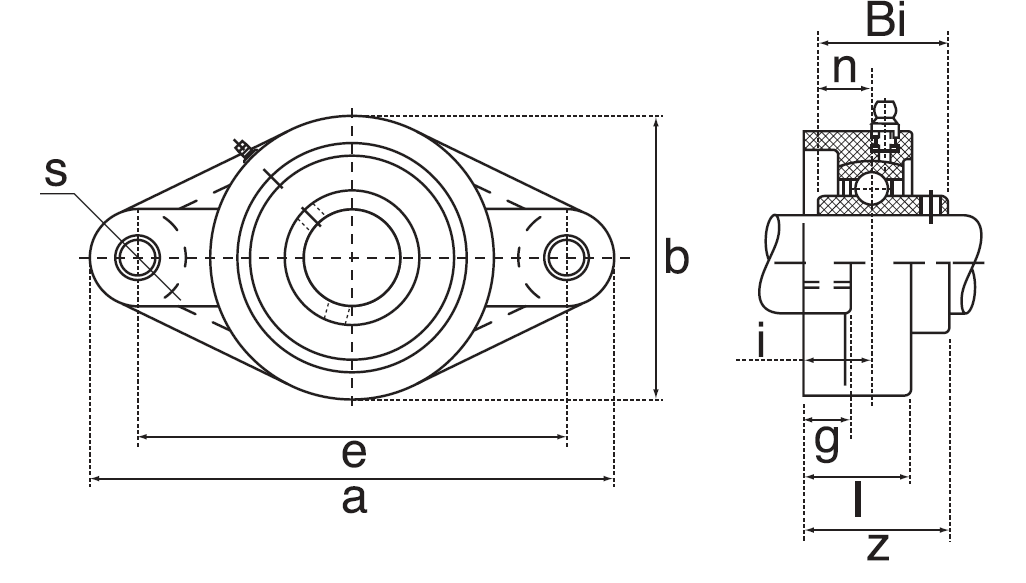

不锈钢轴承座 (SFL)
| Ref | Da | a | e | i | b | l | g | s | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|
|
SFL204
|
47.00 | 112.00 | 89.70 | 15.10 | 60.00 | 25.40 | 11.50 | 11.00 | 0.32 | SUC204 |
|
SFL205
|
52.00 | 125.00 | 98.80 | 15.90 | 68.00 | 27.00 | 13.00 | 12.00 | 0.44 | SUC205 |
|
SFL206
|
62.00 | 141.00 | 116.70 | 17.90 | 80.00 | 30.00 | 13.00 | 12.00 | 0.58 | SUC206 |
|
SFL207
|
72.00 | 155.50 | 130.20 | 19.10 | 90.00 | 33.00 | 14.30 | 13.00 | 0.74 | SUC207 |
|
SFL208
|
80.00 | 171.50 | 143.70 | 21.00 | 100.00 | 36.00 | 14.30 | 13.00 | 0.99 | SUC208 |
|
SFL209
|
85.00 | 179.00 | 148.40 | 21.80 | 108.00 | 37.00 | 14.30 | 16.00 | 1.16 | SUC209 |
|
SFL210
|
90.00 | 189.00 | 157.00 | 21.80 | 115.00 | 38.00 | 15.10 | 16.00 | 1.36 | SUC210 |
|
SFL211
|
100.00 | 224.00 | 184.00 | 25.00 | 130.00 | 43.00 | 16.00 | 19.00 | 2.20 | SUC211 |
|
SFL212
|
110.00 | 250.00 | 202.00 | 29.00 | 140.00 | 48.00 | 18.00 | 23.00 | 2.65 | SUC212 |
塑料轴承座 (TP)
| Ref | h | a | e | b | S1 | S2 | g | w | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP201
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.00 | 31.00 | 12.70 | 0.12 | SUC201 |
|
TP202
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.00 | 31.00 | 12.70 | 0.12 | SUC202 |
|
TP203
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.00 | 31.00 | 12.70 | 0.12 | SUC203 |
|
TP204
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.50 | 31.00 | 12.70 | 0.12 | SUC204 |
|
TP205
|
36.50 | 140.60 | 105.00 | 38.00 | 11.00 | 14.00 | 14.50 | 71.00 | 34.00 | 14.30 | 0.14 | SUC205 |
|
TP206
|
42.90 | 163.00 | 119.00 | 46.00 | 14.00 | 18.00 | 17.80 | 84.00 | 38.10 | 15.90 | 0.20 | SUC206 |
|
TP207
|
47.60 | 168.00 | 127.00 | 48.00 | 14.00 | 18.00 | 18.00 | 94.50 | 42.90 | 17.50 | 0.25 | SUC207 |
|
TP208
|
49.20 | 184.00 | 137.00 | 54.00 | 14.00 | 18.00 | 19.50 | 99.00 | 49.20 | 19.00 | 0.35 | SUC208 |
|
TP209
|
54.00 | 192.00 | 146.00 | 54.00 | 17.00 | 20.00 | 23.00 | 106.00 | 49.20 | 19.00 | 0.45 | SUC209 |
|
TP210
|
57.20 | 206.00 | 159.00 | 60.00 | 17.00 | 20.00 | 23.00 | 114.00 | 51.60 | 19.00 | 0.55 | SUC210 |
|
TP211
|
63.50 | 219.00 | 171.00 | 60.00 | 20.00 | 23.00 | 23.00 | 125.00 | 55.60 | 22.20 | 1.38 | SUC211 |
|
TP212
|
69.50 | 241.00 | 184.00 | 70.00 | 20.00 | 23.00 | 25.00 | 138.00 | 65.10 | 25.40 | 1.52 | SUC212 |
塑料轴承座 (TF)
| Ref | a | e | g | l | s | z | i | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF201
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 36.30 | 18.00 | 31.00 | 12.70 | 0.12 | SUC201 |
|
TF202
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 36.30 | 18.00 | 31.00 | 12.70 | 0.12 | SUC202 |
|
TF203
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 36.30 | 18.00 | 31.00 | 12.70 | 0.12 | SUC203 |
|
TF204
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 36.30 | 18.00 | 31.00 | 12.70 | 0.12 | SUC204 |
|
TF205
|
95.00 | 70.00 | 14.00 | 28.00 | 11.00 | 36.70 | 17.00 | 34.00 | 14.30 | 0.15 | SUC205 |
|
TF206
|
107.00 | 83.00 | 14.30 | 31.50 | 11.00 | 41.40 | 19.20 | 38.10 | 15.90 | 0.18 | SUC206 |
|
TF207
|
118.00 | 92.00 | 15.50 | 34.80 | 13.00 | 46.90 | 21.50 | 42.90 | 17.50 | 0.26 | SUC207 |
|
TF208
|
130.00 | 102.00 | 17.00 | 37.50 | 14.00 | 53.20 | 23.00 | 49.20 | 19.00 | 0.33 | SUC208 |
|
TF209
|
137.00 | 105.00 | 19.00 | 41.00 | 17.00 | 54.20 | 24.00 | 49.20 | 19.00 | 0.42 | SUC209 |
|
TF210
|
143.00 | 111.00 | 21.00 | 43.00 | 17.00 | 57.60 | 25.00 | 51.60 | 19.00 | 0.51 | SUC210 |
|
TF211
|
162.00 | 130.00 | 20.00 | 43.00 | 19.00 | 58.40 | 25.00 | 55.60 | 22.20 | 1.40 | SUC211 |
|
TF212
|
175.00 | 143.00 | 20.00 | 48.00 | 19.00 | 68.70 | 29.00 | 65.10 | 25.40 | 1.60 | SUC212 |
塑料轴承座s (TFL)
| Ref | a | e | b | g | l | s | z | i | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFL201
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC201 |
|
TFL202
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC202 |
|
TFL203
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC203 |
|
TFL204
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC204 |
|
TFL205
|
131.00 | 99.00 | 69.60 | 13.50 | 29.10 | 11.00 | 36.70 | 17.00 | 34.00 | 14.30 | 0.10 | SUC205 |
|
TFL206
|
148.00 | 117.00 | 80.00 | 13.30 | 30.50 | 11.00 | 41.20 | 19.00 | 38.10 | 15.90 | 0.13 | SUC206 |
|
TFL207
|
164.00 | 130.00 | 90.00 | 16.10 | 32.90 | 13.00 | 43.40 | 19.00 | 42.90 | 17.50 | 0.16 | SUC207 |
|
TFL208
|
176.00 | 144.00 | 100.00 | 20.00 | 37.50 | 14.00 | 51.70 | 21.50 | 49.20 | 19.00 | 0.24 | SUC208 |
|
TFL209
|
188.00 | 148.00 | 108.00 | 21.00 | 41.00 | 17.00 | 54.20 | 24.00 | 49.20 | 19.00 | 0.32 | SUC209 |
|
TFL210
|
197.00 | 157.00 | 115.00 | 21.00 | 43.00 | 17.00 | 57.60 | 25.00 | 51.60 | 19.00 | 0.42 | SUC210 |
|
TFL211
|
224.00 | 184.00 | 130.00 | 18.00 | 43.00 | 19.00 | 58.40 | 25.00 | 55.60 | 22.20 | 1.40 | SUC211 |
|
TFL212
|
250.00 | 202.00 | 140.00 | 18.00 | 48.00 | 19.00 | 68.70 | 29.00 | 65.10 | 25.40 | 1.60 | SUC212 |
|
TFL201
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC201 |
|
TFL202
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC202 |
|
TFL203
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC203 |
|
TFL204
|
113.00 | 90.00 | 64.00 | 11.40 | 26.50 | 11.00 | 33.70 | 15.40 | 31.00 | 12.70 | 0.08 | SUC204 |
|
TFL205
|
131.00 | 99.00 | 69.60 | 13.50 | 29.10 | 11.00 | 36.70 | 17.00 | 34.00 | 14.30 | 0.10 | SUC205 |
|
TFL206
|
148.00 | 117.00 | 80.00 | 13.30 | 30.50 | 11.00 | 41.20 | 19.00 | 38.10 | 15.90 | 0.13 | SUC206 |
|
TFL207
|
164.00 | 130.00 | 90.00 | 16.10 | 32.90 | 13.00 | 43.40 | 19.00 | 42.90 | 17.50 | 0.16 | SUC207 |
|
TFL208
|
176.00 | 144.00 | 100.00 | 20.00 | 37.50 | 14.00 | 51.70 | 21.50 | 49.20 | 19.00 | 0.24 | SUC208 |
|
TFL209
|
188.00 | 148.00 | 108.00 | 21.00 | 41.00 | 17.00 | 54.20 | 24.00 | 49.20 | 19.00 | 0.32 | SUC209 |
|
TFL210
|
197.00 | 157.00 | 115.00 | 21.00 | 43.00 | 17.00 | 57.60 | 25.00 | 51.60 | 19.00 | 0.42 | SUC210 |
|
TFL211
|
224.00 | 184.00 | 130.00 | 18.00 | 43.00 | 19.00 | 58.40 | 25.00 | 55.60 | 22.20 | 1.40 | SUC211 |
|
TFL212
|
250.00 | 202.00 | 140.00 | 18.00 | 48.00 | 19.00 | 68.70 | 29.00 | 65.10 | 25.40 | 1.60 | SUC212 |
外球面轴承
| Ref | d | D | B1 | B2 | Load Rating | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | ||||||||
|
SUC201
|
12.00 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC201-8
|
12.70 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SSB 202
|
15.00 | 47.00 | 12.00 | 22.00 | 7820 | 3580 | AISI420 | AISI420 | AISI420 |
|
SUC202
|
15.00 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC202-10
|
15.87 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SSB 203
|
17.00 | 47.00 | 12.00 | 22.00 | 7820 | 3580 | AISI420 | AISI420 | AISI420 |
|
SUC203
|
17.00 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC203-11
|
17.46 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC204-12
|
19.05 | 47.00 | 17.00 | 31.00 | 10000 | 6300 | AISI420 | AISI420 | AISI420 |
|
SSB 204
|
20.00 | 47.00 | 14.00 | 25.00 | 10370 | 5040 | AISI420 | AISI420 | AISI420 |
|
SUC204
|
20.00 | 47.00 | 17.00 | 31.00 | 10000 | 6300 | AISI420 | AISI420 | AISI420 |
|
SSB 205
|
25.00 | 52.00 | 15.00 | 27.00 | 11310 | 5970 | AISI420 | AISI420 | AISI420 |
|
SUC205
|
25.00 | 52.00 | 17.00 | 34.10 | 11000 | 7100 | AISI420 | AISI420 | AISI420 |
|
SUC205-16
|
25.40 | 52.00 | 17.00 | 34.10 | 11000 | 7100 | AISI420 | AISI420 | AISI420 |
|
SSB 206
|
30.00 | 62.00 | 16.00 | 30.00 | 15730 | 8640 | AISI420 | AISI420 | AISI420 |
|
SUC206
|
30.00 | 62.00 | 19.00 | 38.10 | 15200 | 10200 | AISI420 | AISI420 | AISI420 |
|
SUC206-20
|
31.75 | 62.00 | 19.00 | 38.10 | 15200 | 10200 | AISI420 | AISI420 | AISI420 |
|
SUC207-20
|
31.75 | 72.00 | 20.00 | 42.90 | 20100 | 18100 | AISI420 | AISI420 | AISI420 |
|
SSB 207
|
35.00 | 72.00 | 17.00 | 32.00 | 20830 | 11680 | AISI420 | AISI420 | AISI420 |
|
SUC207
|
35.00 | 72.00 | 20.00 | 42.90 | 20100 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC208-24
|
38.10 | 80.00 | 21.00 | 49.20 | 23000 | 18100 | AISI420 | AISI420 | AISI420 |
|
SSB 208
|
40.00 | 80.00 | 18.00 | 34.00 | 23550 | 13600 | AISI420 | AISI420 | AISI420 |
|
SUC208
|
40.00 | 80.00 | 21.00 | 49.20 | 23000 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC209-28
|
44.45 | 85.00 | 22.00 | 49.20 | 25600 | 18100 | AISI420 | AISI420 | AISI420 |
|
SSB 209
|
45.00 | 85.00 | 19.00 | 41.20 | 26440 | 19560 | AISI420 | AISI420 | AISI420 |
|
SUC209
|
45.00 | 85.00 | 22.00 | 49.20 | 25600 | 18100 | AISI420 | AISI420 | AISI420 |
|
SSB 210
|
50.00 | 90.00 | 20.00 | 43.50 | 30010 | 22530 | AISI420 | AISI420 | AISI420 |
|
SUC210
|
50.00 | 90.00 | 23.00 | 31.60 | 27500 | 20200 | AISI420 | AISI420 | AISI420 |
|
SUC210-32
|
50.80 | 90.00 | 23.00 | 31.60 | 27500 | 20200 | AISI420 | AISI420 | AISI420 |
|
SUC211-32
|
50.80 | 100.00 | 25.00 | 55.60 | 33500 | 29200 | AISI420 | AISI420 | AISI420 |
|
SUC211
|
55.00 | 100.00 | 25.00 | 55.60 | 33500 | 29200 | AISI420 | AISI420 | AISI420 |
|
SUC212
|
60.00 | 110.00 | 27.00 | 65.10 | 36800 | 32800 | AISI420 | AISI420 | AISI420 |
