常用不锈钢公制轴承
Reference

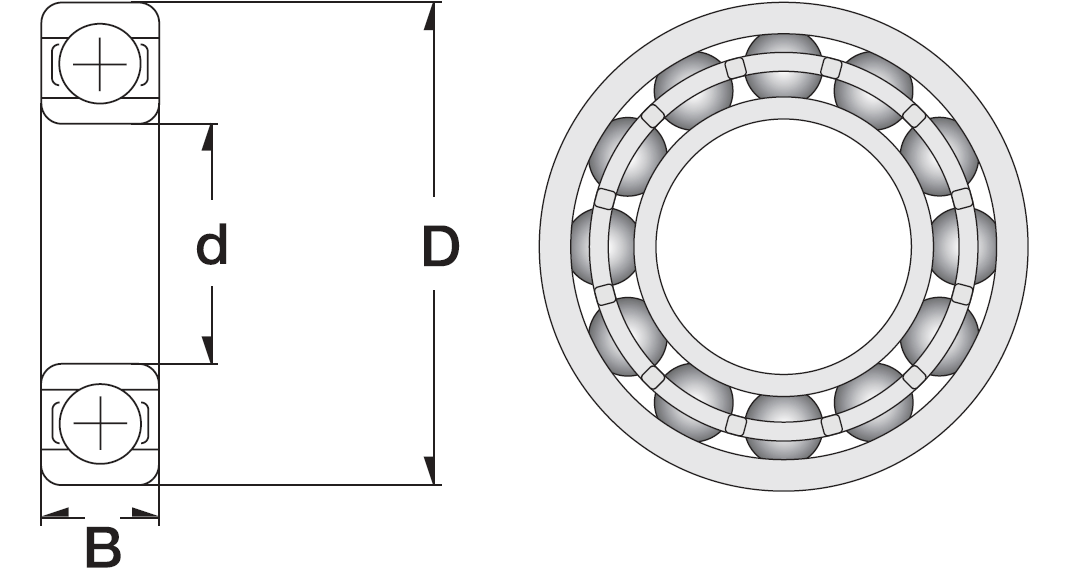

d = inner ring dimension
D = Outer ring dimension
B = Bearing width
| Ref | d | D | B | Load Rating | Weight | Radial Play | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||
S6000
|
10.00 | 26.00 | 8.00 | 3234 | 1393 | 19 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6000-2Z
|
10.00 | 26.00 | 8.00 | 3234 | 1393 | 19 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6000-2RS
|
10.00 | 26.00 | 8.00 | 3234 | 1393 | 19 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6000-2TS
|
10.00 | 26.00 | 8.00 | 3234 | 1393 | 19 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S16100
|
10.00 | 28.00 | 8.00 | - | - | 22 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S16100-2Z
|
10.00 | 28.00 | 8.00 | - | - | 22 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S16100-2RS
|
10.00 | 28.00 | 8.00 | - | - | 22 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6200-2TS
|
10.00 | 30.00 | 9.00 | 3549 | 1652 | 32 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6200-2RS
|
10.00 | 30.00 | 9.00 | 3549 | 1652 | 32 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6200-2Z
|
10.00 | 30.00 | 9.00 | 3549 | 1652 | 32 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6200
|
10.00 | 30.00 | 9.00 | 3549 | 1652 | 32 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S62200-2RS
|
10.00 | 30.00 | 14.00 | - | - | 40 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6300-2RS
|
10.00 | 35.00 | 11.00 | 5642 | 2380 | 53 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6300-2Z
|
10.00 | 35.00 | 11.00 | 5642 | 2380 | 53 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S6300
|
10.00 | 35.00 | 11.00 | 5642 | 2380 | 53 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S62300-2RS
|
10.00 | 35.00 | 17.00 | - | - | 60 | 0.002 - 0.013 | AISI440 | AISI440 | AISI440 |
|
S16001-2Z
|
12.00 | 28.00 | 7.00 | - | - | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16001-2RS
|
12.00 | 28.00 | 7.00 | - | - | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16001
|
12.00 | 28.00 | 7.00 | - | - | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6001
|
12.00 | 28.00 | 8.00 | 3549 | 1652 | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6001-2TS
|
12.00 | 28.00 | 8.00 | 3549 | 1652 | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6001-2RS
|
12.00 | 28.00 | 8.00 | 3549 | 1652 | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6001-2Z
|
12.00 | 28.00 | 8.00 | 3549 | 1652 | 22 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6201-2TS
|
12.00 | 32.00 | 10.00 | 4809 | 2170 | 37 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6201-2RS
|
12.00 | 32.00 | 10.00 | 4809 | 2170 | 37 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6201-2Z
|
12.00 | 32.00 | 10.00 | 4809 | 2170 | 37 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6201
|
12.00 | 32.00 | 10.00 | 4809 | 2170 | 37 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S62201-2RS
|
12.00 | 32.00 | 14.00 | - | - | 45 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6301
|
12.00 | 37.00 | 12.00 | 6825 | 2905 | 60 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6301-2Z
|
12.00 | 37.00 | 12.00 | 6825 | 2905 | 60 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6301-2RS
|
12.00 | 37.00 | 12.00 | 6825 | 2905 | 60 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S62301-2RS
|
12.00 | 37.00 | 17.00 | - | - | 70 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16002
|
15.00 | 32.00 | 8.00 | - | - | 25 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16002-2Z
|
15.00 | 32.00 | 8.00 | - | - | 25 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16002-2RS
|
15.00 | 32.00 | 8.00 | - | - | 25 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6002-2TS
|
15.00 | 32.00 | 9.00 | 3913 | 1995 | 30 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6002-2RS
|
15.00 | 32.00 | 9.00 | 3913 | 1995 | 30 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6002-2Z
|
15.00 | 32.00 | 9.00 | 3913 | 1995 | 30 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6002
|
15.00 | 32.00 | 9.00 | 3913 | 1995 | 30 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6202
|
15.00 | 35.00 | 11.00 | 5460 | 2170 | 45 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6202-2Z
|
15.00 | 35.00 | 11.00 | 5460 | 2170 | 45 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6202-2RS
|
15.00 | 35.00 | 11.00 | 5460 | 2170 | 45 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6202-2TS
|
15.00 | 35.00 | 11.00 | 5460 | 2170 | 45 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S62202-2RS
|
15.00 | 35.00 | 14.00 | - | - | 54 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6302
|
15.00 | 42.00 | 13.00 | 7980 | 3780 | 82 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6302-2Z
|
15.00 | 42.00 | 13.00 | 7980 | 3780 | 82 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6302-2RS
|
15.00 | 42.00 | 13.00 | 7980 | 3780 | 82 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S62302-2RS
|
15.00 | 42.00 | 17.00 | - | - | 110 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16003
|
17.00 | 35.00 | 8.00 | - | - | 32 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16003-2Z
|
17.00 | 35.00 | 8.00 | - | - | 32 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16003-2RS
|
17.00 | 35.00 | 8.00 | - | - | 32 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6003-2TS
|
17.00 | 35.00 | 10.00 | 4235 | 2275 | 39 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6003-2RS
|
17.00 | 35.00 | 10.00 | 4235 | 2275 | 39 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6003-2Z
|
17.00 | 35.00 | 10.00 | 4235 | 2275 | 39 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6003
|
17.00 | 35.00 | 10.00 | 4235 | 2275 | 39 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6203
|
17.00 | 40.00 | 12.00 | 6755 | 3325 | 65 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6203-2Z
|
17.00 | 40.00 | 12.00 | 6755 | 3325 | 65 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6203-2RS
|
17.00 | 40.00 | 12.00 | 6755 | 3325 | 65 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6203-2TS
|
17.00 | 40.00 | 12.00 | 6755 | 3325 | 65 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S62203-2RS
|
17.00 | 40.00 | 16.00 | - | - | 83 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6303
|
17.00 | 47.00 | 14.00 | 9450 | 4585 | 120 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6303-2Z
|
17.00 | 47.00 | 14.00 | 9450 | 4585 | 120 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S6303-2RS
|
17.00 | 47.00 | 14.00 | 9450 | 4585 | 120 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S62303-2RS
|
17.00 | 47.00 | 19.00 | - | - | 150 | 0.003 - 0.018 | AISI440 | AISI440 | AISI440 |
|
S16004-2RS
|
20.00 | 42.00 | 8.00 | - | - | 50 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S16004-2Z
|
20.00 | 42.00 | 8.00 | - | - | 50 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S16004
|
20.00 | 42.00 | 8.00 | - | - | 50 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6004
|
20.00 | 42.00 | 12.00 | 6552 | 3500 | 69 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6004-2Z
|
20.00 | 42.00 | 12.00 | 6552 | 3500 | 69 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6004-2RS
|
20.00 | 42.00 | 12.00 | 6552 | 3500 | 69 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6004-2TS
|
20.00 | 42.00 | 12.00 | 6552 | 3500 | 69 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6204-2TS
|
20.00 | 47.00 | 14.00 | 8890 | 4585 | 110 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6204-2RS
|
20.00 | 47.00 | 14.00 | 8890 | 4585 | 110 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6204-2Z
|
20.00 | 47.00 | 14.00 | 8890 | 4585 | 110 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6204
|
20.00 | 47.00 | 14.00 | 8890 | 4585 | 110 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S62204-2RS
|
20.00 | 47.00 | 18.00 | - | - | 130 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6304-2RS
|
20.00 | 52.00 | 15.00 | 11130 | 5460 | 140 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6304-2Z
|
20.00 | 52.00 | 15.00 | 11130 | 5460 | 140 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6304
|
20.00 | 52.00 | 15.00 | 11130 | 5460 | 140 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S62304-2RS
|
20.00 | 52.00 | 21.00 | - | - | 200 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S16005
|
25.00 | 47.00 | 8.00 | - | - | 60 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S16005-2Z
|
25.00 | 47.00 | 8.00 | - | - | 60 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S16005-2RS
|
25.00 | 47.00 | 8.00 | - | - | 60 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6005
|
25.00 | 47.00 | 12.00 | 7840 | 4585 | 80 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6005-2Z
|
25.00 | 47.00 | 12.00 | 7840 | 4585 | 80 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6005-2RS
|
25.00 | 47.00 | 12.00 | 7840 | 4585 | 80 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6205-2RS
|
25.00 | 52.00 | 15.00 | 9800 | 5460 | 130 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6205-2Z
|
25.00 | 52.00 | 15.00 | 9800 | 5460 | 130 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6205
|
25.00 | 52.00 | 15.00 | 9800 | 5460 | 130 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S62205-2RS
|
25.00 | 52.00 | 18.00 | - | - | 150 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6305
|
25.00 | 62.00 | 17.00 | 15750 | 8120 | 230 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6305-2Z
|
25.00 | 62.00 | 17.00 | 15750 | 8120 | 230 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6305-2RS
|
25.00 | 62.00 | 17.00 | 15750 | 8120 | 230 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S62305-2RS
|
25.00 | 62.00 | 24.00 | - | - | 320 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6006
|
30.00 | 55.00 | 13.00 | 9310 | 5810 | 120 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6006-2Z
|
30.00 | 55.00 | 13.00 | 9310 | 5810 | 120 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6006-2RS
|
30.00 | 55.00 | 13.00 | 9310 | 5810 | 120 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6206-2RS
|
30.00 | 62.00 | 16.00 | 13650 | 7840 | 200 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6206-2Z
|
30.00 | 62.00 | 16.00 | 13650 | 7840 | 200 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6206
|
30.00 | 62.00 | 16.00 | 13650 | 7840 | 200 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6306
|
30.00 | 72.00 | 19.00 | 19670 | 11200 | 350 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6306-2Z
|
30.00 | 72.00 | 19.00 | 19670 | 11200 | 350 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6306-2RS
|
30.00 | 72.00 | 19.00 | 19670 | 11200 | 350 | 0.005 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6007-2RS
|
35.00 | 62.00 | 14.00 | 11130 | 7140 | 160 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6007
|
35.00 | 62.00 | 14.00 | 11130 | 7140 | 160 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6207
|
35.00 | 72.00 | 17.00 | 17850 | 10710 | 290 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6207-2RS
|
35.00 | 72.00 | 17.00 | 17850 | 10710 | 290 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6008
|
40.00 | 68.00 | 15.00 | 11760 | 8120 | 190 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6008-2RS
|
40.00 | 68.00 | 15.00 | 11760 | 8120 | 190 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6208-2RS
|
40.00 | 80.00 | 18.00 | 21490 | 13300 | 370 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6208
|
40.00 | 80.00 | 18.00 | 21490 | 13300 | 370 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6308
|
40.00 | 90.00 | 23.00 | 23240 | 13300 | 460 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6308-2RS
|
40.00 | 90.00 | 23.00 | 23240 | 13300 | 460 | 0.006 - 0.02 | AISI440 | AISI440 | AISI440 |
|
S6009
|
45.00 | 75.00 | 16.00 | 14602 | 10220 | 250 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6009-2RS
|
45.00 | 75.00 | 16.00 | 14602 | 10220 | 250 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6209-2RS
|
45.00 | 85.00 | 19.00 | 23240 | 15120 | 410 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6209
|
45.00 | 85.00 | 19.00 | 23240 | 15120 | 410 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6010
|
50.00 | 80.00 | 16.00 | 15120 | 11200 | 260 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6010-2RS
|
50.00 | 80.00 | 16.00 | 15120 | 11200 | 260 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6210-2RS
|
50.00 | 90.00 | 20.00 | 24570 | 16240 | 460 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6210
|
50.00 | 90.00 | 20.00 | 24570 | 16240 | 460 | 0.006 - 0.023 | AISI440 | AISI440 | AISI440 |
|
S6011
|
55.00 | 90.00 | 18.00 | 19670 | 14770 | 390 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6011-2RS
|
55.00 | 90.00 | 18.00 | 19670 | 14770 | 390 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6211
|
55.00 | 100.00 | 21.00 | 30520 | 20300 | 610 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6211-2RS
|
55.00 | 100.00 | 21.00 | 30520 | 20300 | 610 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6012-2RS
|
60.00 | 95.00 | 18.00 | 20720 | 16240 | 420 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6012
|
60.00 | 95.00 | 18.00 | 20720 | 16240 | 420 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6212
|
60.00 | 110.00 | 22.00 | 33250 | 22750 | 780 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6212-2RS
|
60.00 | 110.00 | 22.00 | 33250 | 22750 | 780 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6013-2RS
|
65.00 | 100.00 | 18.00 | 21490 | 17500 | 440 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6013
|
65.00 | 100.00 | 18.00 | 21490 | 17500 | 440 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6213
|
65.00 | 120.00 | 23.00 | 39130 | 28350 | 990 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6213-2RS
|
65.00 | 120.00 | 23.00 | 39130 | 28350 | 990 | 0.008 - 0.028 | AISI440 | AISI440 | AISI440 |
|
S6014
|
70.00 | 110.00 | 20.00 | 20776 | 16940 | 580 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6014-2RS
|
70.00 | 110.00 | 20.00 | 20776 | 16940 | 580 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6214-2RS
|
70.00 | 125.00 | 24.00 | 32753 | 26313 | 1080 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6214
|
70.00 | 125.00 | 24.00 | 32753 | 26313 | 1080 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6015
|
75.00 | 115.00 | 20.00 | 21637 | 18620 | 610 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6015-2RS
|
75.00 | 115.00 | 20.00 | 21637 | 18620 | 610 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6215
|
75.00 | 130.00 | 25.00 | 35595 | 28882 | 630 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6215-2RS
|
75.00 | 130.00 | 25.00 | 35595 | 28882 | 690 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6016-2RS
|
80.00 | 125.00 | 22.00 | 33250 | 28000 | 950 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6016
|
80.00 | 125.00 | 22.00 | 33250 | 28000 | 860 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6216
|
80.00 | 140.00 | 26.00 | 50050 | 38150 | 1430 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6216-2RS
|
80.00 | 140.00 | 26.00 | 50050 | 38150 | 1500 | 0.01 - 0.03 | AISI440 | AISI440 | AISI440 |
|
S6018
|
90.00 | 140.00 | 24.00 | 44660 | 41300 | 1380 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6018-2RS
|
90.00 | 140.00 | 24.00 | 44660 | 41300 | 1520 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6218-2RS
|
90.00 | 160.00 | 30.00 | 66850 | 50400 | 2300 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6218
|
90.00 | 160.00 | 30.00 | 66850 | 50400 | 2190 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6020
|
100.00 | 150.00 | 24.00 | 50750 | 49000 | 1630 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6020-2RS
|
100.00 | 150.00 | 24.00 | 50750 | 49000 | 1790 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6220-2RS
|
100.00 | 180.00 | 34.00 | 85400 | 65100 | 3360 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6220
|
100.00 | 180.00 | 34.00 | 85400 | 65100 | 3200 | 0.012 - 0.036 | AISI440 | AISI440 | AISI440 |
|
S6022
|
110.00 | 170.00 | 28.00 | 56000 | 55230 | 2350 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6022-2RS
|
110.00 | 170.00 | 28.00 | 56000 | 55230 | 2590 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6222-2RS
|
110.00 | 200.00 | 38.00 | 56700 | 56700 | 4500 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6222
|
110.00 | 200.00 | 38.00 | 56700 | 56700 | 4290 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6024-2RS
|
120.00 | 180.00 | 28.00 | 93100 | 74200 | 2880 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6024
|
120.00 | 180.00 | 28.00 | 93100 | 74200 | 2620 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6224
|
120.00 | 215.00 | 40.00 | 109200 | 91700 | 5260 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6224-2RS
|
120.00 | 215.00 | 40.00 | 109200 | 91700 | 5500 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6026-2RS
|
130.00 | 200.00 | 33.00 | 67760 | 70000 | 3510 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6026
|
130.00 | 200.00 | 33.00 | 67760 | 70000 | 4550 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6226
|
130.00 | 230.00 | 40.00 | 115500 | 103600 | 6040 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6226-2RS
|
130.00 | 230.00 | 40.00 | 115500 | 103600 | 6340 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6028
|
140.00 | 210.00 | 33.00 | 86590 | 91000 | 4210 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6028-2RS
|
140.00 | 210.00 | 33.00 | 86590 | 91000 | 4630 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6228-2RS
|
140.00 | 250.00 | 42.00 | 116200 | 105000 | 7700 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6228
|
140.00 | 250.00 | 42.00 | 116200 | 105000 | 7410 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6030
|
150.00 | 225.00 | 35.00 | 92400 | 87500 | 3900 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6030-2RS
|
150.00 | 225.00 | 35.00 | 92400 | 87500 | 4290 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6230
|
150.00 | 270.00 | 45.00 | 122500 | 118300 | 9760 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
|
S6230-2RS
|
150.00 | 270.00 | 45.00 | 122500 | 118300 | 10250 | 0.015 - 0.041 | AISI440 | AISI440 | AISI440 |
